Special Tools

...

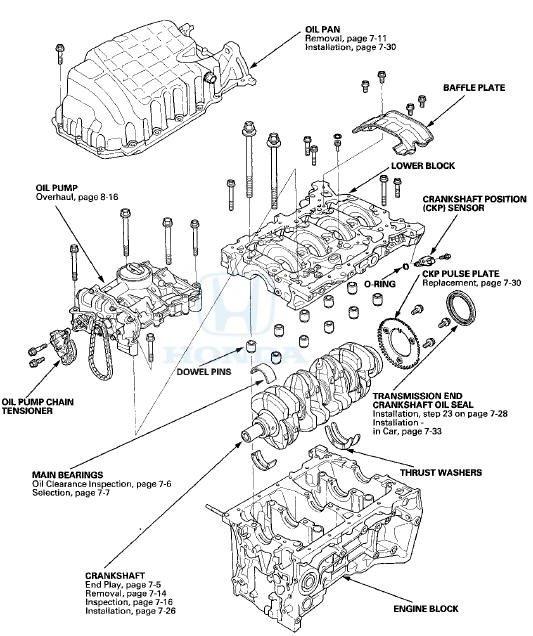

Connecting Rod and Crankshaft End Play Inspection

1. Remove the oil pump (see page 8-16). 2. Remove the baffle plate (see step 8 on page 7-14). 3. Measure the connecting rod end play with a feeler gauge between the connecting rod and the cran ...

See also:

To Turn Everything Off
To turn the system completely off, press the ON/OFF button. Keep the system completely off for short periods only. To keep stale air and mustiness from collecting, you should have the fan ru ...

VTC Oil Control Solenoid Valve Removal/Test/lnstallation
1 Disconnect the VTC oil control solenoid valve 2P connector (A). 2. Remove the bolt (B) and the VTC oil control solenoid valve (C). 3. Connect VTC oil control valve 2P connector terminal No. ...

Cooling System
Component Location Index Radiator Cap Test 1. Wait until the engine is cool, then carefully remove the radiator cap (A). Wet the radiator cap seal with engine coolant, then install it on a com ...
