Honda Accord: Cf Under Head Cover Mmmmm - Cylinder Head -All Models Except PZEV - Engine Mechanical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Cf Under Head Cover Mmmmm

1. Remove the strut brace (if equipped) (see page 20-306).

2. Remove the engine cover.

3. Remove the four ignition coils (see page 4-20).


3. Remove the four ignition coils (see page 4-20).

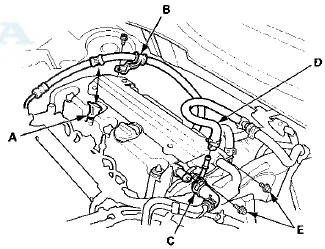

4. Remove the dipstick (A), and the power steering (P/S) hose bracket (B) and disconnect the breather hose (C) and the brake booster vacuum hose (D).

5. Remove the two bolts (E) securing the evaporative


5. Remove the two bolts (E) securing the evaporative emission (EVAP) canister purge valve bracket.

6. Remove the cylinder head cover.
