Honda Accord: Trunk Lid Cushion Replacement - Trunk Lid - Body - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Trunk Lid Cushion Replacement

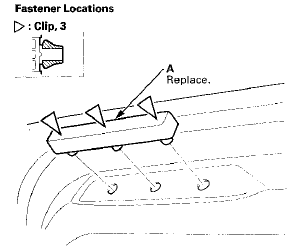

1. Remove the trunk lid cushion (A) by pulling it out to detach the clips.

2. Replace the trunk lid cushion with a new one.


2. Replace the trunk lid cushion with a new one.

3. Install the trunk lid cushion by pushing on the clip areas until the clips snap into place.

    Trunk Lid Weatherstrip Replacement
    NOTE: 4-door Is shown; 2-door Is similar. 1. Remove the trunk lid weatherstrip (A) by pulling it off. 2. Locate the painted alignment mark (B or C) on the trunk lid weatherstrip. Align the pain ...

    Trunk Lid Dynamic Damper Replacement
    2-door NOTE: Take care not to scratch the trunk lid. 1. Remove the cover (A) by releasing the hooks (B). Remove the bolts, and detach the clips, then remove the trunk lid dynamic damper bracke ...
