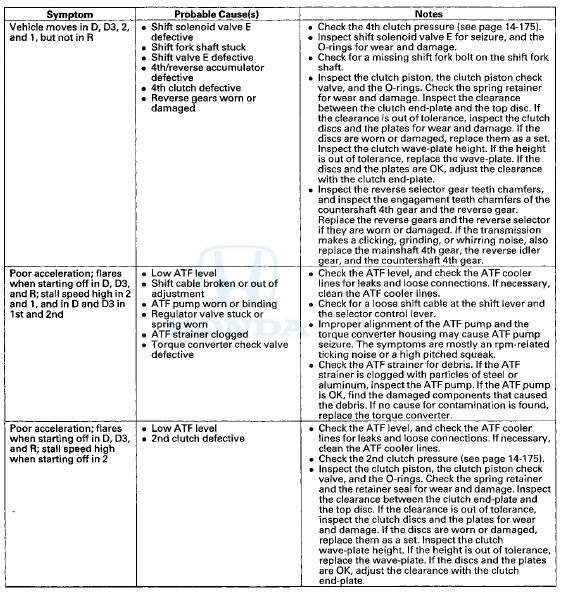

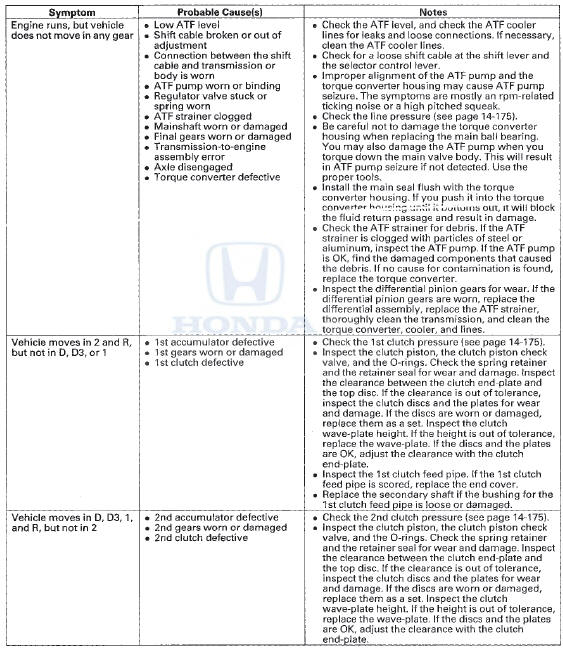

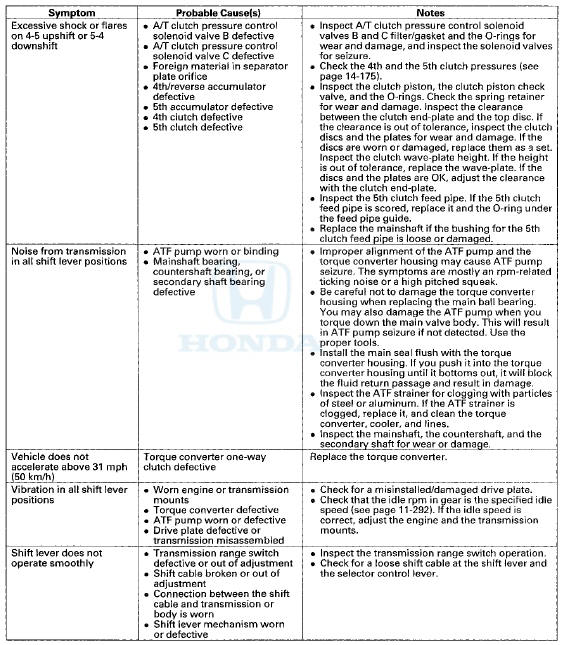

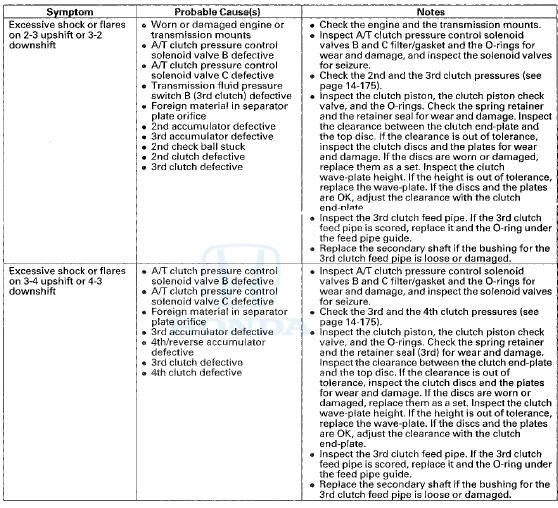

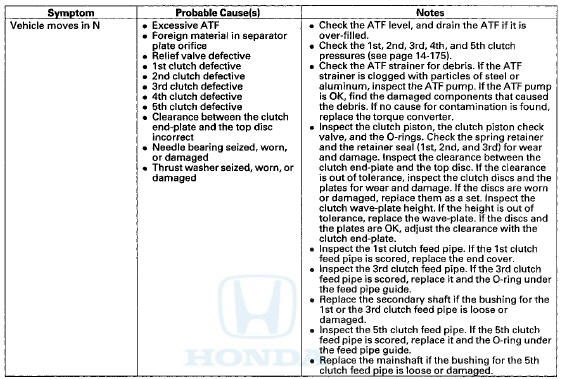

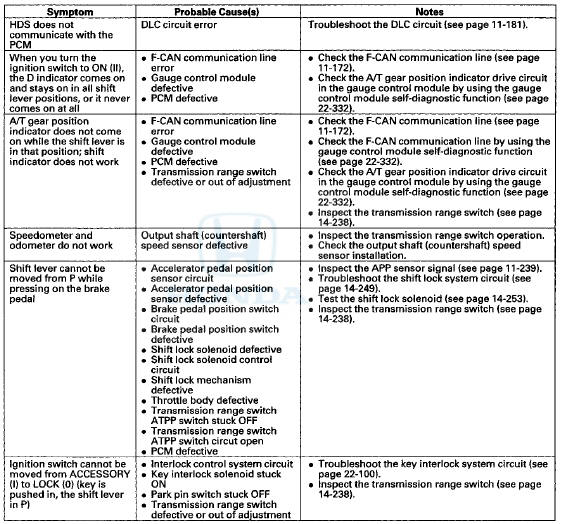

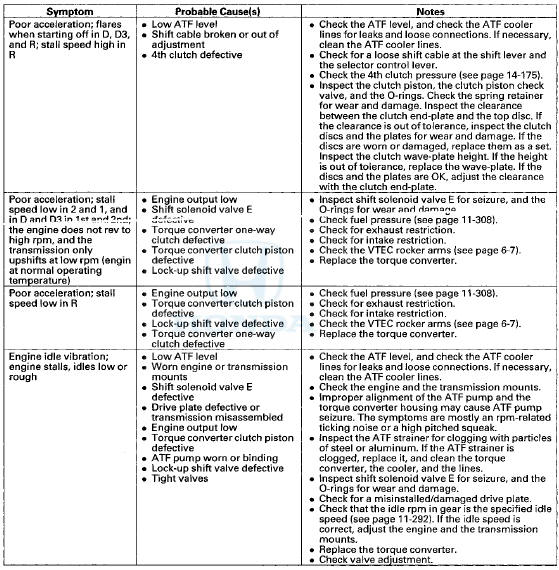

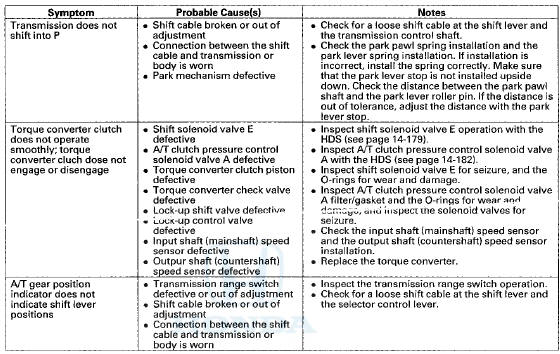

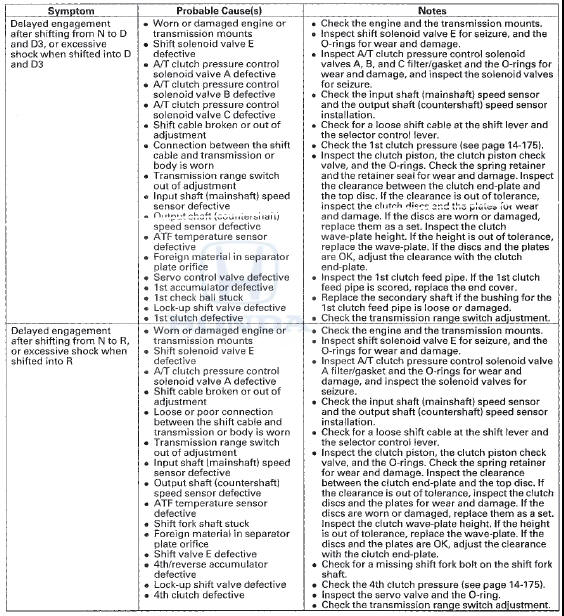

Honda Accord: Symptom Troubleshooting Index
NOTE: Do an all DTC check with the HDS and troubleshoot those first before following the repair procedures listed in the index.
