Honda Accord: Shift Lever Disassembly/Reassembly - Automatic Transmission - Transaxle - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Shift Lever Disassembly/Reassembly

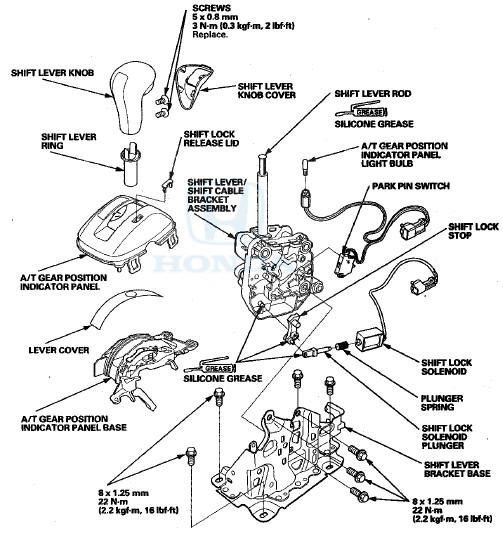

Type A Shift Lever

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands of gloves.

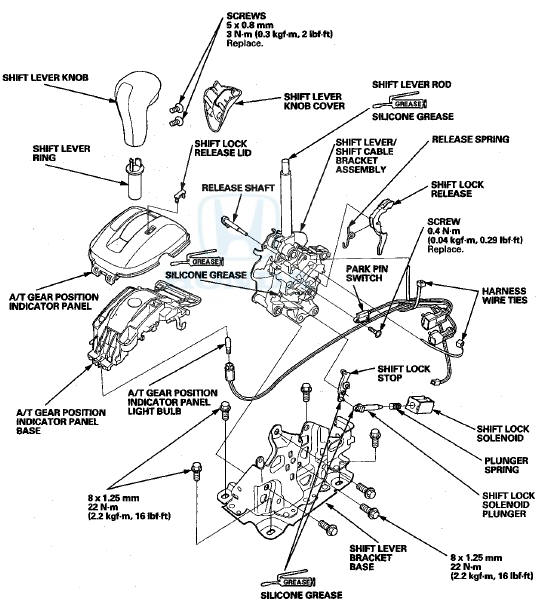

Type B Shift Lever


Type B Shift Lever

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands of gloves.
