Honda Accord: Rear Seat-back Latch Replacement
NOTE: - Take care not to bend or scratch the interior trim.
- 4-door is shown; 2-door is similar.
1. Remove the rear shelf (see page 20-128).

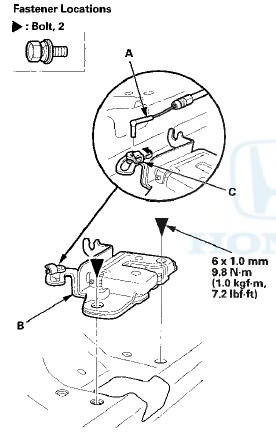

2. Disconnect the seat-back release cable (A) from the seat-back latch (B), and remove the bolts, then remove the latch. Take care not to damage the cable fastener (C).
3. Install the seat-back latch in the reverse order of removal, and note these items: - Make sure the release cable is connected securely.
- Make sure the seat-back locks securely and unlocks properly.
Rear Seat Removal/Installation
Seat-back
NOTE; Take care not to scratch the body or tear the seat
covers.
3.Remove the seat-back (A).
-1. Pull out the center seat belt (B) through the slit (C) in
the seat belt guide (D).
...
Rear Seat-back Release Lever/Cable
Removal/Installation
NOTE:
- Take care not to bend or scratch the interior trim.
- 4-door is shown; 2-door is similar.
1. Remove the rear shelf (see page 20-128).
2. Disconnect the seat-back release cable (A) fr ...
