Honda Accord: Front Door Glass Outer Weatherstrip
Replacement - Doors - Body - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Front Door Glass Outer Weatherstrip Replacement

Eighth generation (2008–2012) / Honda Accord MK8 2008-2012 Service Manual / Body / Doors / Front Door Glass Outer Weatherstrip Replacement

NOTE: - Put on gloves to protect your hands.

- Take care not to scratch the door.

1. Remove t h e s e Items:

- Door panel

- 2-door (see page 20-12)

- 4-door (see page 20-17)

- Plastic cover, as needed (see step 3 on page 20-21) - Power mirror (see page 20-62) 2. Remove the screws from the front and rear edges of the door.

3. From the inside of the door, slide the clips (A) of the

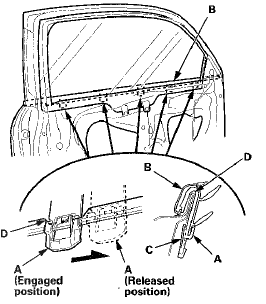

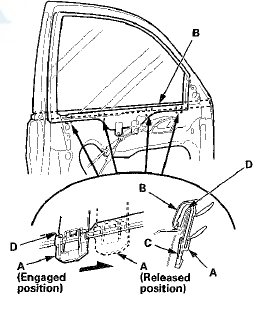

3. From the inside of the door, slide the clips (A) of the door glass outer weatherstrip (B) to release the hooks (C) from the flanges (D) of the door.

2-door

4-door


4-door

4. Pull up the door glass outer weatherstrip (A), then


4. Pull up the door glass outer weatherstrip (A), then remove it.

5. Before installing the door glass outer weatherstrip,


5. Before installing the door glass outer weatherstrip, slide the clips to the released position as in step 3.

6. Install the door glass outer weatherstrip, and slide the clips securely on to the flanges.

7. Reinstall all remaining removed parts and note these items: - Make sure the plastic cover on the door is installed properly and sealed around its outside perimeter to seal out water.

- Check for water leaks (see step 9 on page 20-57).
