Honda Accord: DTC Troubleshooting Index
Eighth generation (2008–2012) / Honda Accord MK8 2008-2012 Service Manual / Heating, Ventilation, and Air Conditioning / Climate Control / DTC Troubleshooting Index

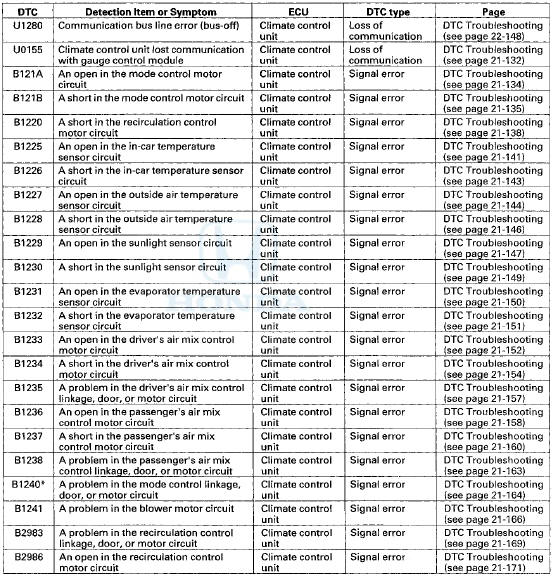

Checking the DTCs by HDS
*:'10 model
