Honda Accord: Front Door Sash Outer Trim
Replacement - Doors - Body - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Front Door Sash Outer Trim Replacement

NOTE: - Take care not to scratch the door.

- 4-door is shown; 2-door is similar.

1. Remove the door outer molding (see page 20-36).

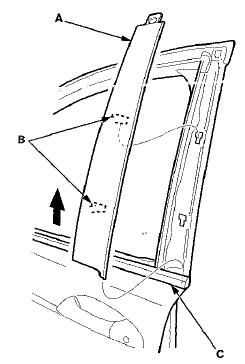

2. Pull up the door sash outer trim (A) to release the hooks (B) from the door, and release the trim from between the door glass outer weatherstrip (C) and the door, then remove the trim. Take care not to damage the door glass outer weatherstrip.

3. Install the trim in the reverse order of removal.


3. Install the trim in the reverse order of removal.
