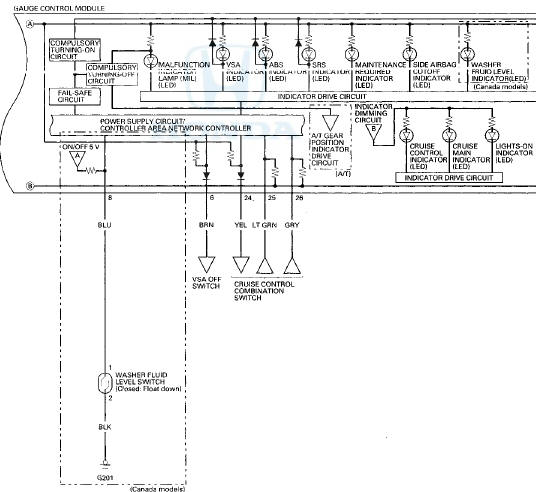

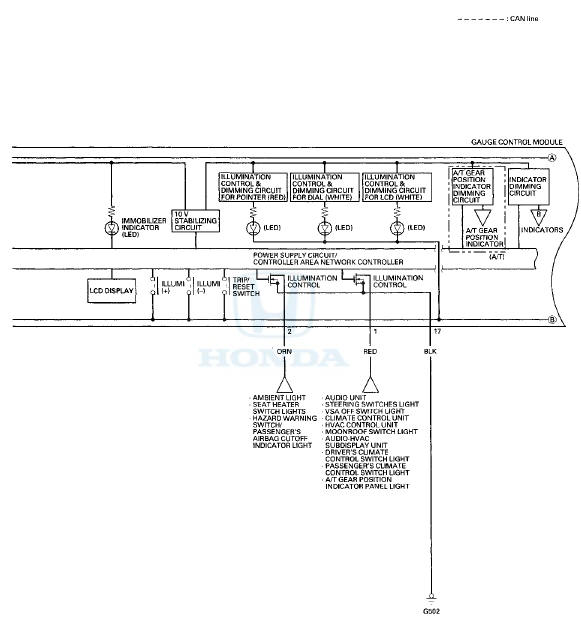

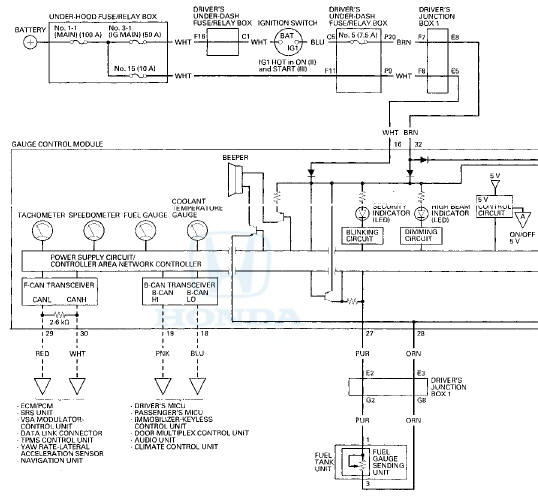

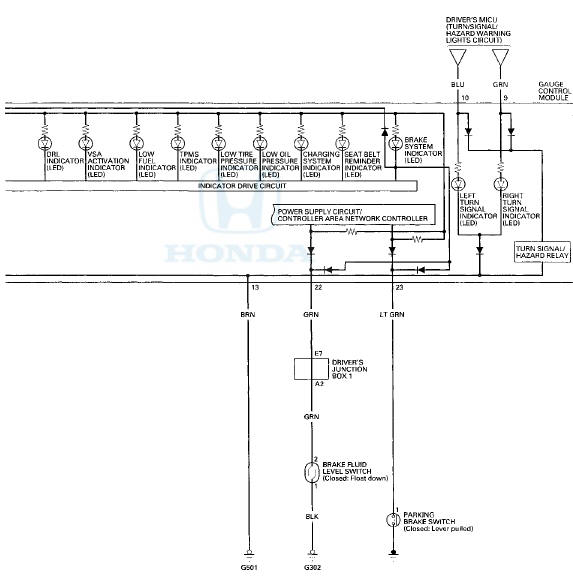

Honda Accord: Circuit Diagram - Gauges - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram
