Honda Accord: Symptom Troubleshooting Index - VSA System Components - Brakes - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Symptom Troubleshooting Index

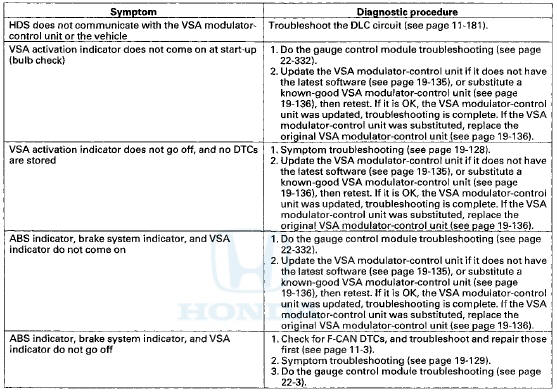

When the vehicle has one of these symptoms, check for VSA diagnostic trouble codes (DTCs) with the HDS. If there are no DTCs, do the diagnostic procedure for the symptom, in the sequence listed, until you find the cause.
