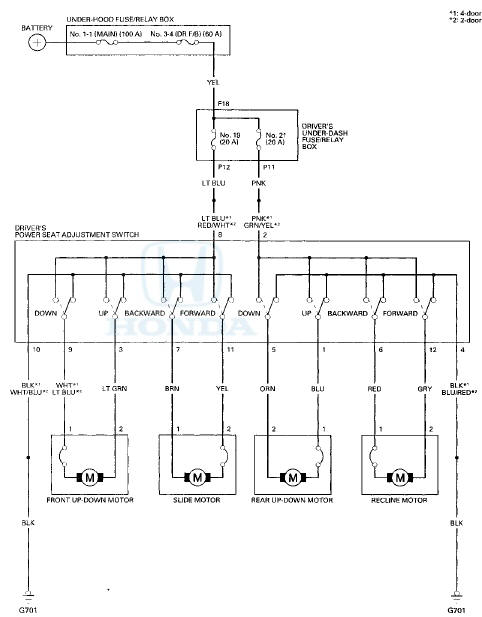

Honda Accord: Circuit Diagram
Eighth generation (2008–2012) / Honda Accord MK8 2008-2012 Service Manual / Body Electrical / Power Seats / Circuit Diagram
Power Seat Adjustment Switch
Test/Replacement
1. Remove the driver's seat (see page 20-194).
2. Remove the power seat adjustment switch knobs (A) and the recline cover from
the driver's seat.
• 4-door (see page 20-234)
• 2-door ...
