Special Tools Required

•Driver Handle, 15 x 135L 07749-0010000

•Oil Seal Driver Attachment 07947-SD90101

-Oil Seal Driver Attachment 07JAD-PH80101

1. Remove the oil seal from the transmission housing.

2. Remove the oil seal from the torque converter


2. Remove the oil seal from the torque converter housing.

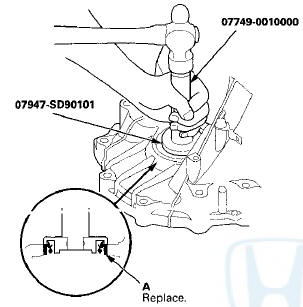

3. Install a new oil seal (A) flush with the transmission


3. Install a new oil seal (A) flush with the transmission housing using the driver handle and the oil seal driver attachment.
