Honda Accord: Intake Air Resonator
Removal / Installation - Intake Air System - Fuel and Emissions - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Intake Air Resonator Removal / Installation

1. Do the battery removal procedure (see page 22-92).

2. Remove the air cleaner (see page 11-332).

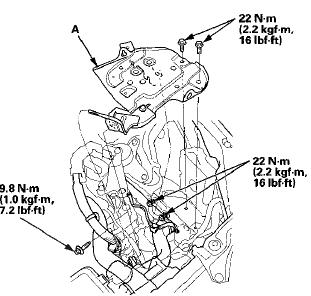

3. Remove the battery base (A)

4. Remove the front grille cover.


4. Remove the front grille cover.

 - 2-door (see page 20-274)

 - 4-door (see page 20-274)

5. Remove the water separator (A) and the intake duct (B).

6. Remove the front bumper (see page 20-255).


6. Remove the front bumper (see page 20-255).

7. Remove the intake air resonator (A).

8. Install the parts in the reverse order of removal.


8. Install the parts in the reverse order of removal.

9. Do the battery installation procedure (see page 22-92).
