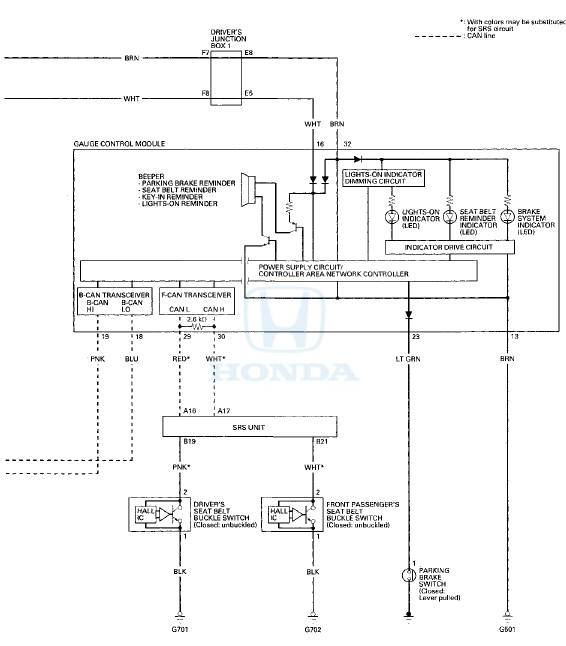

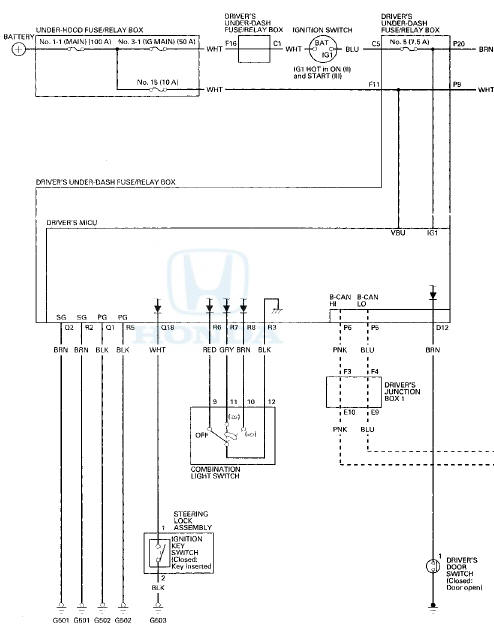

Honda Accord: Circuit Diagram - Reminder Systems - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram


Control Unit Input Test


    Component Location Index
    ...

    Control Unit Input Test
    NOTE: Before testing, troubleshoot the multiplex integrated control unit first, using B-CAN System Diagnosis Test Mode A (see page 22-134). Driver's MICU 1. Turn the ignition switch to LOCK (0), ...
