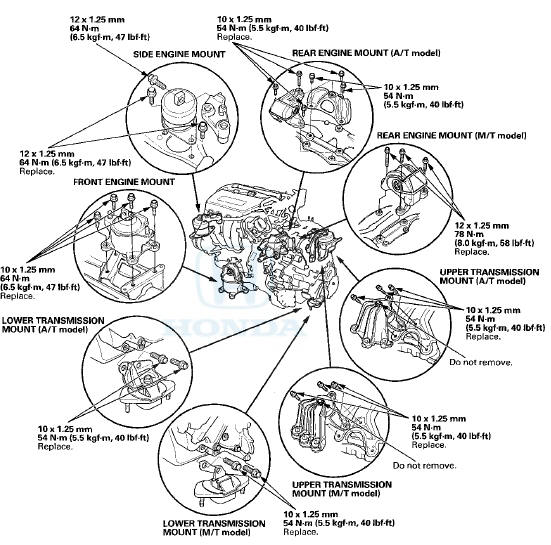

Engine Installation

Special Tools Required - Universal Lifting Eyelet 07AAK-SNAA120 Engine Hanger Adapter VSB02C000015 Engine Support Hanger, A and Reds AAR-T-1256* Subframe Adapter VSB02C000016 Subframe Alignment P ...

Cylinder Head -All Models Except PZEV

...

See also:

Switch Test/Replacement
1. Separate the lumbar support switch cover (A) from the switch (B). 2. Disconnect the 5P connector (C) from the switch. 3. Check for continuity between the terminals in each switch position a ...

Connecting Rod and Crankshaft End Play Inspection
1. Remove the oil pump (see page 8-16). 2. Remove the baffle plate (see step 8 on page 7-14). 3. Measure the connecting rod end play with a feeler gauge between the connecting rod and the cran ...

Differential Thrust Clearance Adjustment
Special Tools Required Driver Handle, 40 mm I.D. 07746-0030100 1 Remove trie left driveshaft side oil seal from the transmission housing (see page 13-70). 2. If you removed the 80 mm shim from t ...
