Honda Accord: Clutch Pedal, Clutch Pedal Position Switch, and
Clutch Interlock Switch Adjustment
NOTE: - For a cruise control problem, check the clutch pedal position switch (see page 4-45).
- For a clutch interlock operation problem, check the clutch interlock switch (see page 4-9).
- Remove the driver's floor mat before adjusting the clutch pedal.
- If there is no clearance between the master cylinder piston and the pushrod, the release bearing will be held against the diaphragm spring, which can result in clutch slippage or other clutch problems.
1 Disconnect the clutch pedal position switch connector and the clutch interlock switch connector.

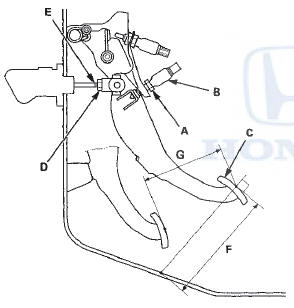

2. Loosen the clutch pedal position switch locknut (A), and back off the clutch pedal position switch (B) until it no longer touches the clutch pedal (C).
3. Loosen the clutch pushrod locknut (D), and turn the pushrod (E) in or out to get the specified height (F), and the stroke (G) at the clutch pedal. If adjusting the pushrod causes the clutch pedal to contact the clutch pedal position switch, back off the switch further.
F Clutch Pedal Height: 174 mm (6.9 in) G Clutch Pedal Stroke: 130-140 mm (5.1 - 5 . 5 in)
4. Tighten the clutch pushrod locknut (A).
5. With the clutch pedal released, turn in the clutch pedal position switch (B) until it contacts the clutch pedal.
6. Turn in the clutch pedal position switch an additional 3/4 to 1 turn. Make sure the clutch pedal height did not change.
7. While holding the clutch pedal position switch, tighten the locknut (C).

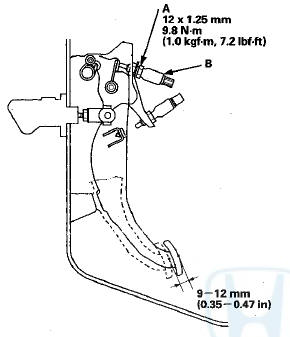

8. Loosen the clutch interlock switch locknut (A).
9. Fully press the clutch pedal to the floor, then release the clutch pedal 9-”12 mm (0.35-”0.47 in) and hold it there.
10. Adjust the position of the clutch interlock switch (B) so the engine starts with the clutch pedal in this position.
11. While holding the clutch interlock switch, tighten the locknut 12. Check the clutch operation.
13. Connect the clutch pedal position switch connector and the clutch interlock switch connector, then check the cruise control and the clutch interlock operation.
Clutch Hydraulic System Bleeding
NOTE:
- Do not reuse the drained fluid. Always use Honda
DOT 3 Brake Fluid from an unopened container. Using
a non-Honda brake fluid can cause corrosion and
shorten the life of the system.
- Ma ...
Clutch Pedal Assembly Replacement
1. Disconnect the clutch pedal position switch connector
(A) and the clutch interlock switch connector (B).
2. Pry out the lock pin (C), and pull the clevis pin (D) out
of the clevis.
3. Remov ...
