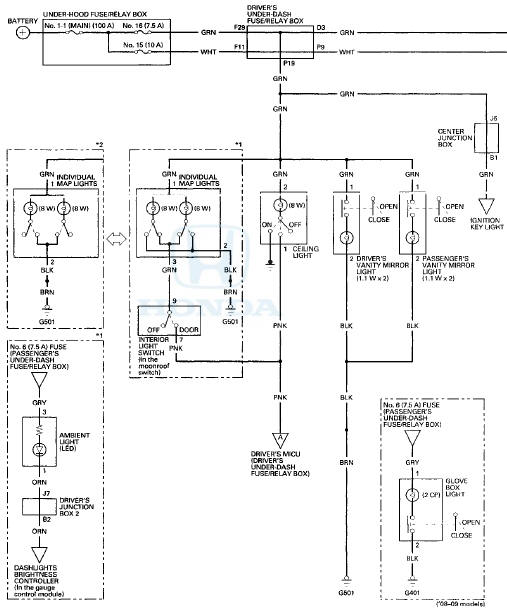

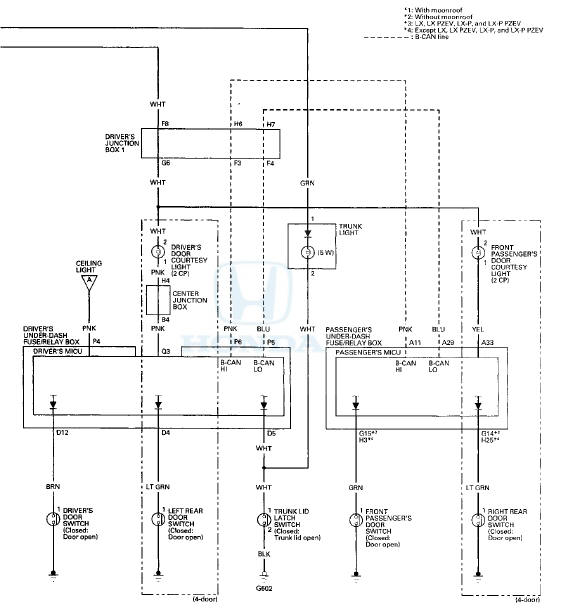

Honda Accord: Circuit Diagram - Interior Lights - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram


Front Individual Map Light


    Component Location Index
    4-door 2-door ...

    Front Individual Map Light Test/Replacement
    With moonroof 1. Turn the map light switch OFF. 2. Carefully pry the lens ( A ) off with a small screwdriver. Individual Map Light: 8 W x 2 3 . Remove the screws, then remove the individual ma ...

    See also:

    Wiper Motor Test
    4-door 1. Remove the driver's side wiper arm (see page 22-321). 2. Remove the left side cowl cover (see page 22-321). 3. Disconnect 5P connector (A) from the windshield wiper motor (B). 4. ...

    Ignition Timing Inspection
    1. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 on page 11-3). 2. Turn the ignition switch to ON (II). 3. Make sure the HDS communicates with the vehic ...

    Side Impact Sensor (First) Replacement
    4-Door Removal 1. Do t h e battery t e r m i n a l d i s c o n n e c t i o n procedure (see page 22-91), t h e n w a i t at least 3 m i n u t e s before s t a r t i ng work. 2. Remove t h e B-p ...
