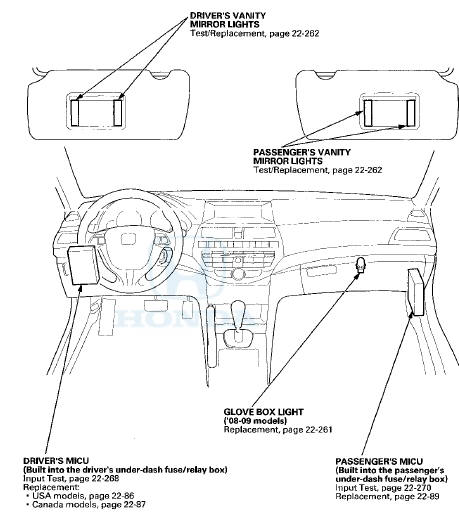

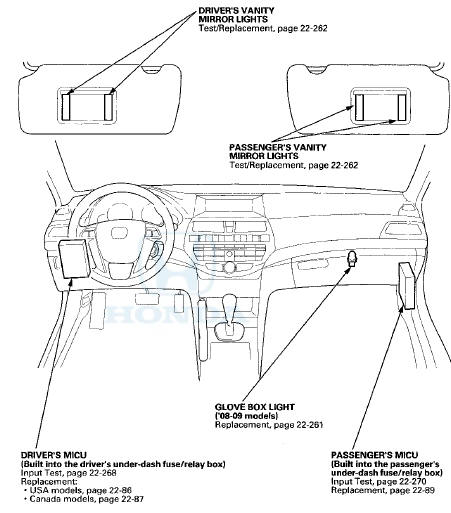

Honda Accord: Component Location Index - Interior Lights - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Component Location Index

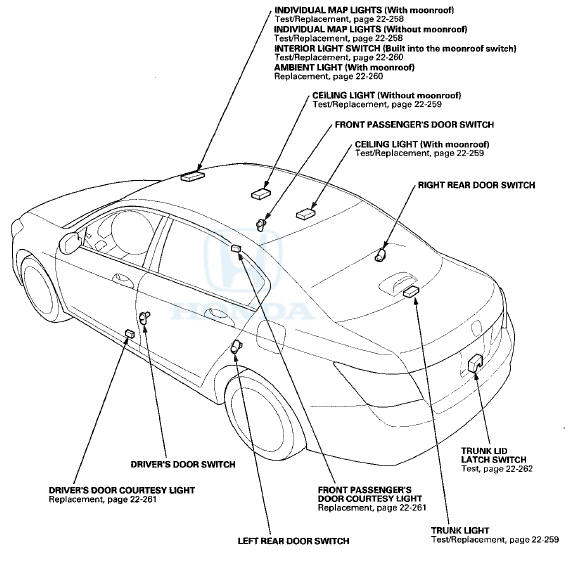

4-door

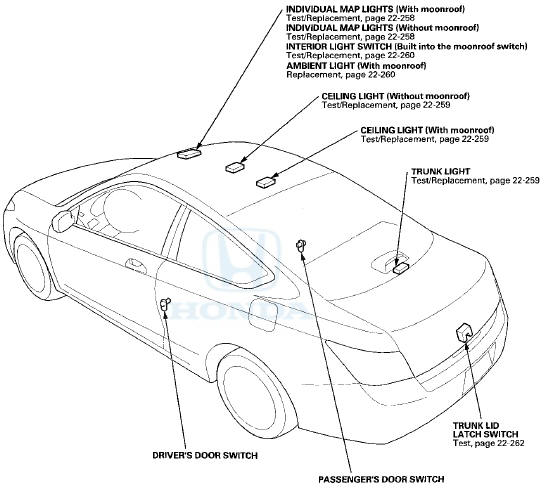

2-door


2-door


Circuit Diagram


    Interior Lights
    ...

    Circuit Diagram
    ...
