Honda Accord: Circuit Diagram - Ignition Switch - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram

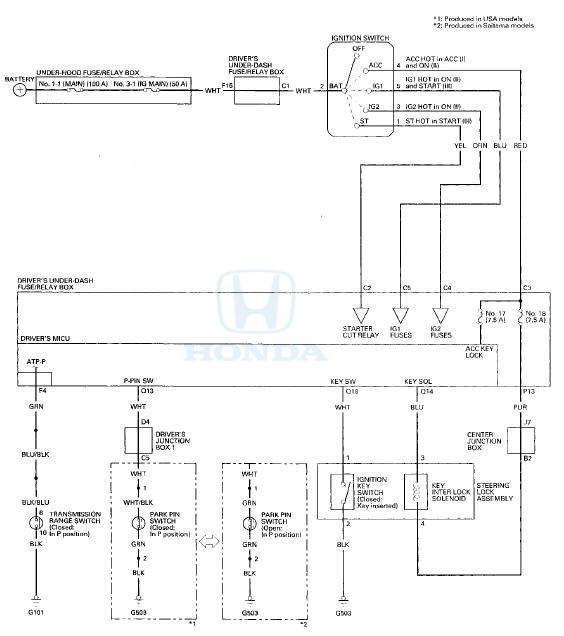

Key Interlock System Circuit


    Component Location Index
    ...

    Key Interlock System Circuit Troubleshooting
    Produced in USA models NOTE: SRS components are located in the area. Review the SRS component locations 4-door {see page 24-21), 2-door (see page 24-23), and precautions and procedures (see page 2 ...

    See also:

    Brake Pedal Position Switch Signal Circuit Troubleshooting
    1. Turn the ignition switch to ON (II). 2. Check the BRAKE SWITCH in the DATA LIST with the HDS. Does it indicate OFF? YES-Go to step 3. NO-lnspect the brake pedal position switch (see page ...

    Audio Communication Line Circuit Troubleshooting
    1. Turn the ignition switch to LOCK (0). 2. Disconnect climate control unit connector A (28P) and the audio-HVAC subdisplay (with navigation) or audio-HVAC display unit (without navigation) 12P ...
