Honda Accord: ELD Replacement - PGM-FI System - Fuel and Emissions - Honda Accord MK8 2008-2012 Service ManualHonda Accord: ELD Replacement

1. Do the battery terminal disconnection procedure (see page 22-91).

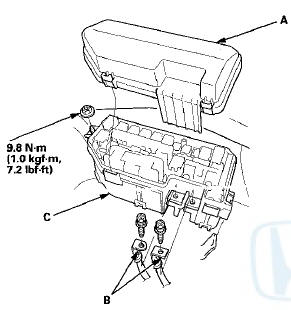

2. Remove the upper cover (A), then remove the two positive ( + ) terminals (B).

3. Remove the under-hood fuse/relay box (C) from the


3. Remove the under-hood fuse/relay box (C) from the bracket.

4. Remove the lower cover (A).

5. Disconnect the ELD 3P connector (B).


5. Disconnect the ELD 3P connector (B).

6. Remove the fuses (A) and (B).

7. Release the three lock tabs (A), then remove the ELD


7. Release the three lock tabs (A), then remove the ELD (B).

8. Install the parts in the reverse order of removal.


8. Install the parts in the reverse order of removal.

9. Do the battery terminal reconnection procedure (see page 22-91).
