Honda Accord: Valve Stem-to-Guide Clearance
Inspection - Cylinder Head -All Models Except PZEV - Engine Mechanical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Valve Stem-to-Guide Clearance Inspection

1. Remove the valves (see page 6-86).

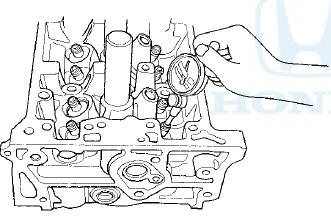

2. Subtract the O.D. of the valve stem, measured with a micrometer, from the I.D. of the valve guide, measured with an inside micrometer or a ball gauge.

Take the measurements in three places along the valve stem and three places inside the valve guide.

The difference between the largest guide measurement and the smallest stem measurement should not exceed the service limit.

Intake Valve Stem-to-Guide Clearance

Standard (New): 0.030-0.055 mm

(0.0012 -0.0022 in)

Service Limit: 0.08 mm (0.003 in)

Exhaust Valve Stem-to-Guide

Clearance

Standard (New): 0.055-”0.080 mm

(0.0022-0.0031 in)

Service Limit: 0.11 mm (0.004 in)

Waive Guide Replacement


    Valve, Spring, and Valve Seal Removal
    Special Tools Required Valve Spring Compressor Attachment 07757-PJ1010A Identify the valves and the valve springs as they are removed so that each item can be reinstalled in its original position. ...

    Waive Guide Replacement
    Special Tools Required Valve Guide Driver, 5.35 x 9.7 mm 07742-0010100 Valve Guide Reamer, 5.5 mm 07HAH-PJ7A100 1. Inspect the valve stem-to-guide clearance (see page 6-88). 2. As illustrated, ...
