Honda Accord: Connector to Harness Index - Connectors and Harnesses - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Connector to Harness Index

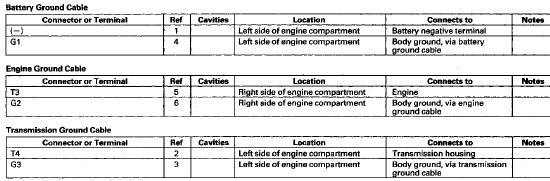

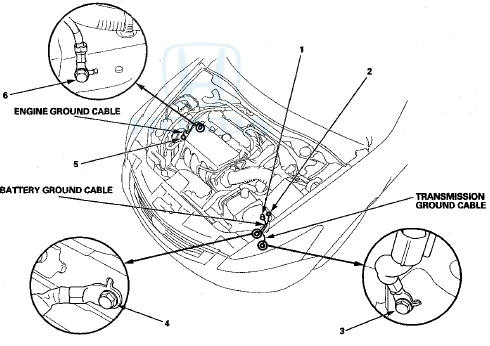

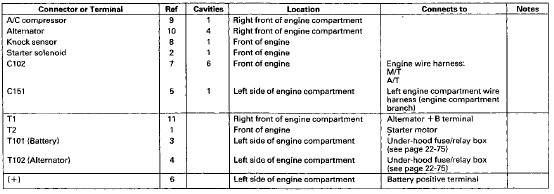

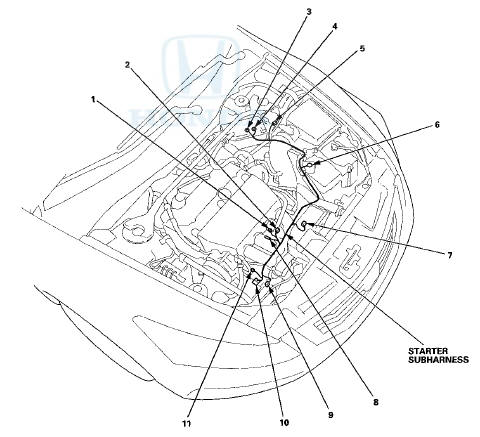

Starter Subharness


Starter Subharness

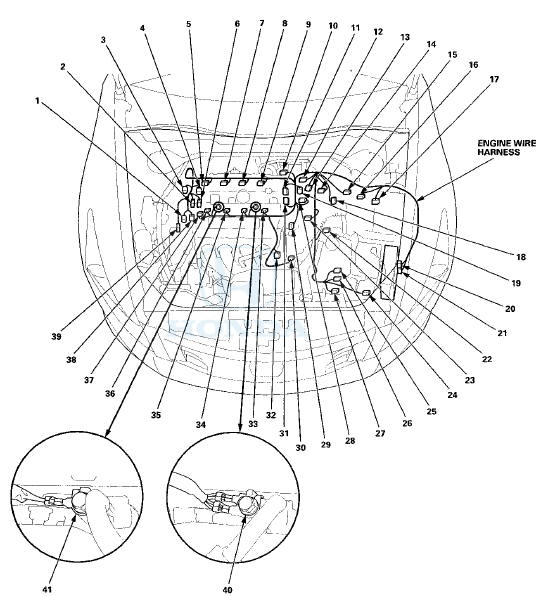

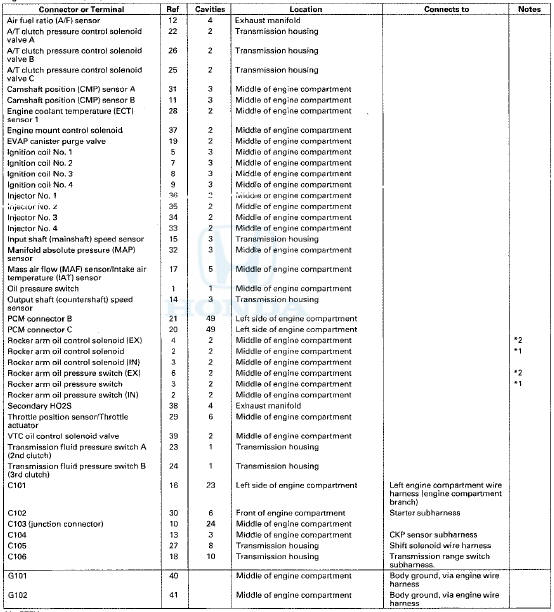

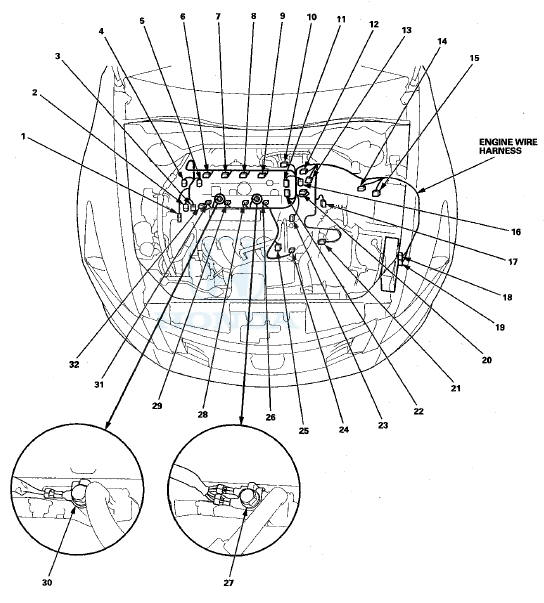

Engine Wire Harness (M/T)


Engine Wire Harness (M/T)

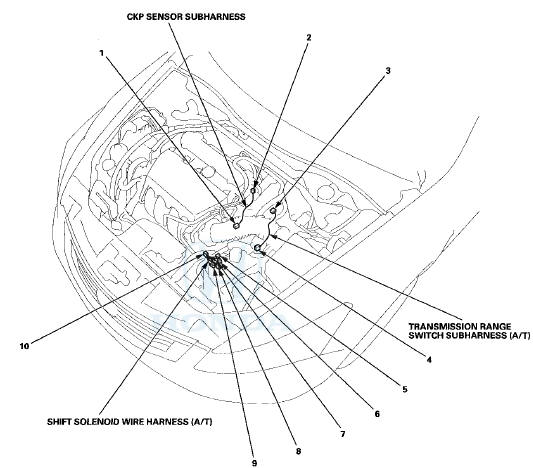

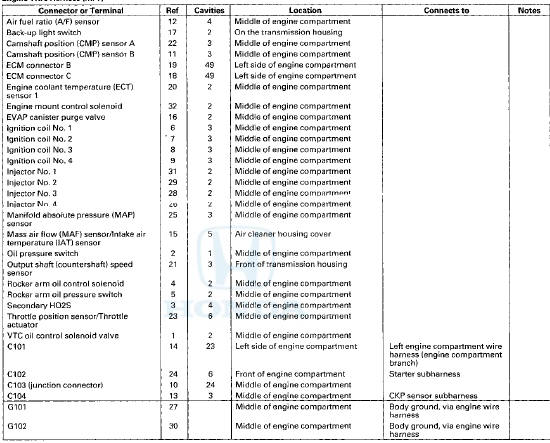

Engine Wire Harness ( A / T )


Engine Wire Harness ( A / T )

*1: PZEV


*1: PZEV

*2: Except PZEV

CKP Sensor Subharness


CKP Sensor Subharness

Shift Solenoid Wire Harness (A/T)


Shift Solenoid Wire Harness (A/T)

Transmission Range Switch Subharness (A/T)


Transmission Range Switch Subharness (A/T)

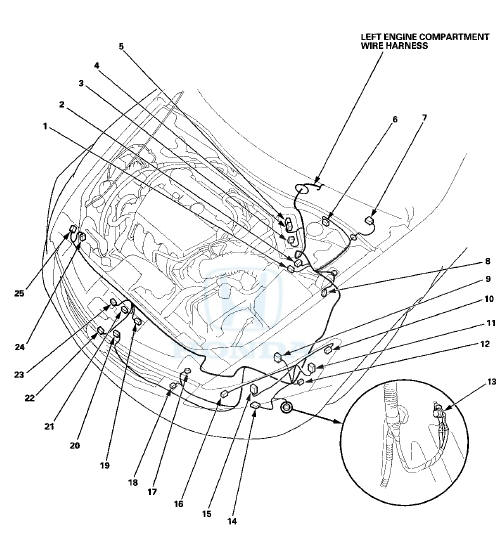

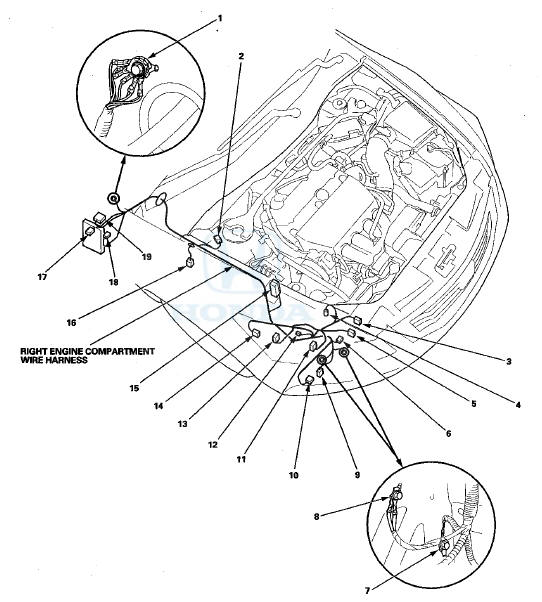

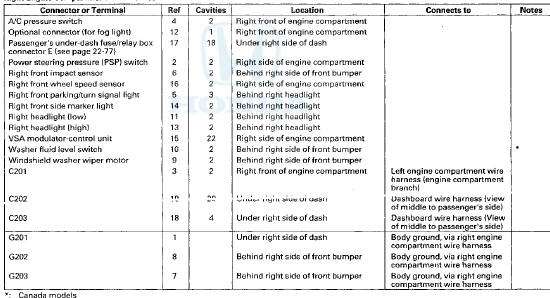

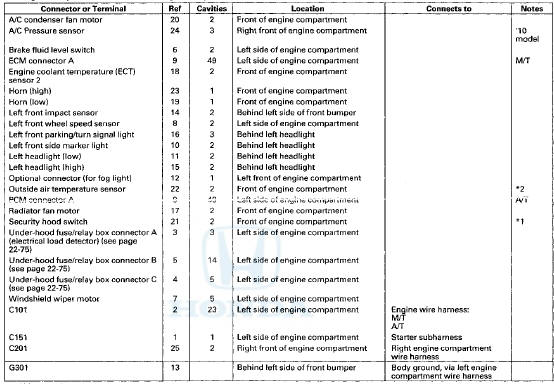

Right Engine Compartment Wire Harness


Right Engine Compartment Wire Harness


Left Engine Compartment Wire Harness (Engine compartment branch)


Left Engine Compartment Wire Harness (Engine compartment branch)

*1: With security


*1: With security

*2; With climate control

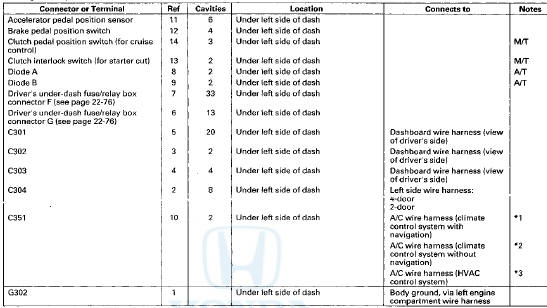

Left Engine Compartment Wire Harness (Dash branch)


Left Engine Compartment Wire Harness (Dash branch)

*1: With climate control and navigation system


*1: With climate control and navigation system

*2: With climate control without navigation system

*3: With HVAC control

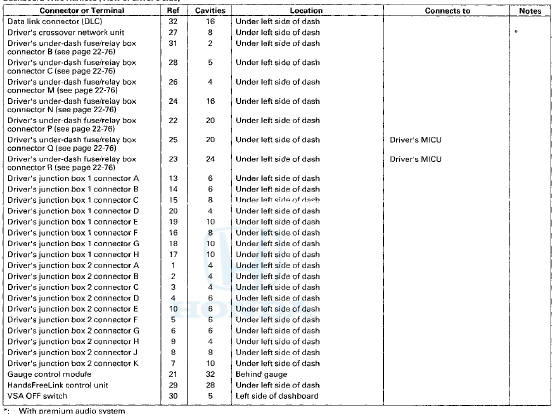

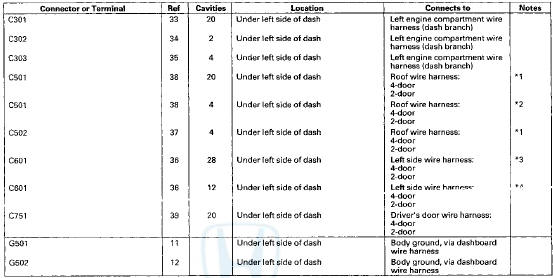

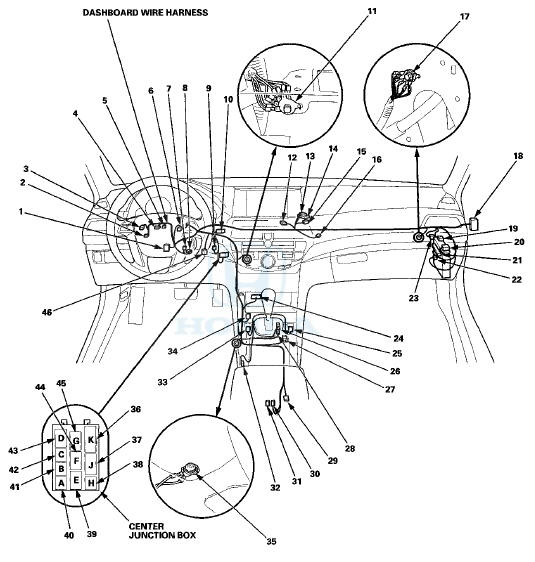

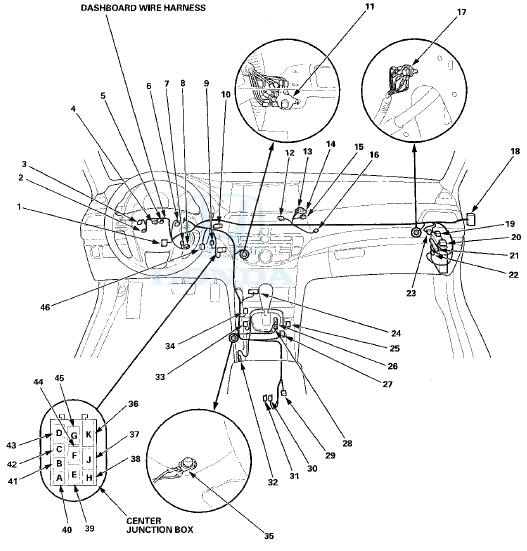

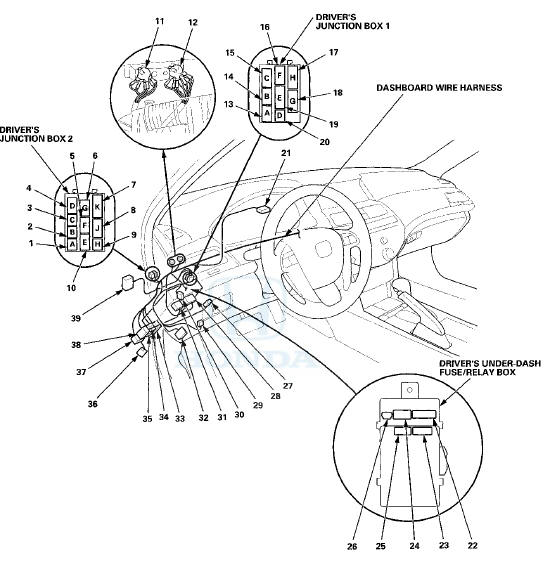

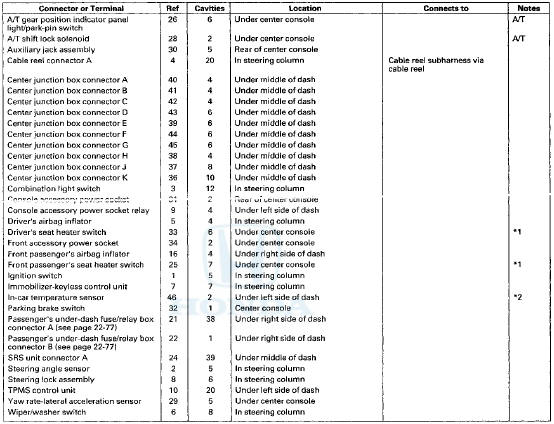

Dashboard Wire Harness (View of driver's side)


Dashboard Wire Harness (View of driver's side)

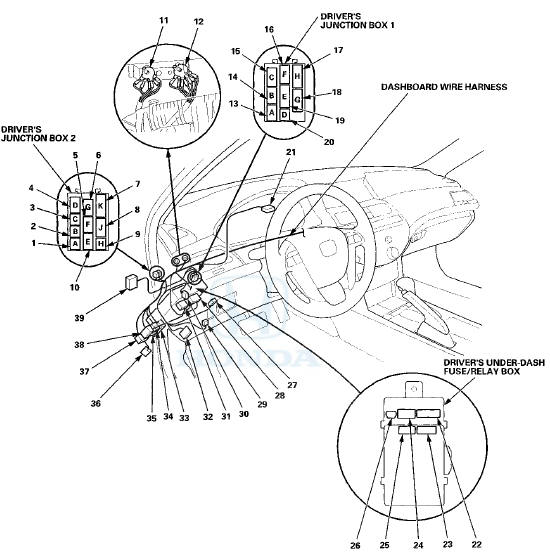

Dashboard Wire Harness ( V i e w of driver's side) (cont'd)


Dashboard Wire Harness ( V i e w of driver's side) (cont'd)

*1: With moonroof


*1: With moonroof

*2: Without moonroof

*3: Except LX, LX PZEV, LX-P, LX-P PZEV

*4: LX, LX PZEV, LX-P, LX-P PZEV

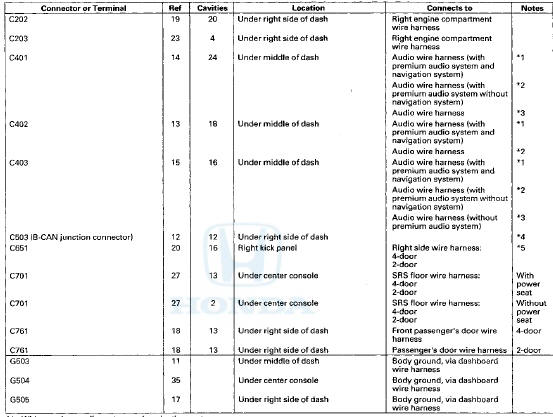

Dashboard Wire Harness (View of middle to passenger's side)


Dashboard Wire Harness (View of middle to passenger's side)

*1: With seat heater


*1: With seat heater

*2: With climate control

Dashboard Wire Harness (View of middle to passenger's side) (cont'd)


Dashboard Wire Harness (View of middle to passenger's side) (cont'd)

* 1 : With premium audio system and navigation system


* 1 : With premium audio system and navigation system

*2: With premium audio system without navigation system

*3: Without premium audio system

*4 With 6CD type

*5: With navigation system

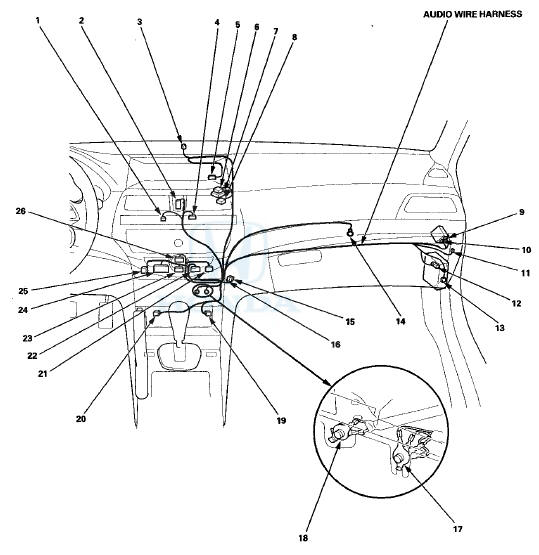

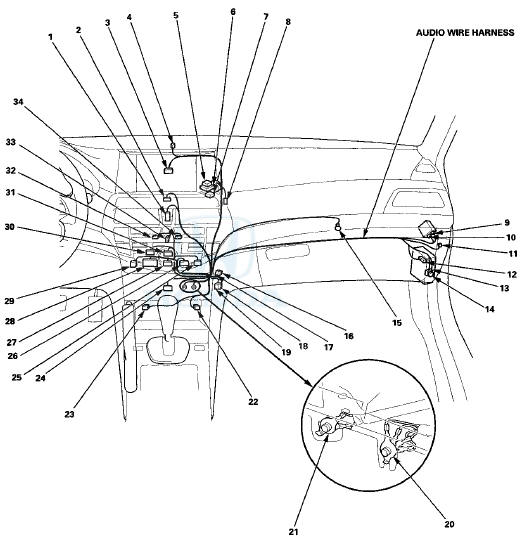

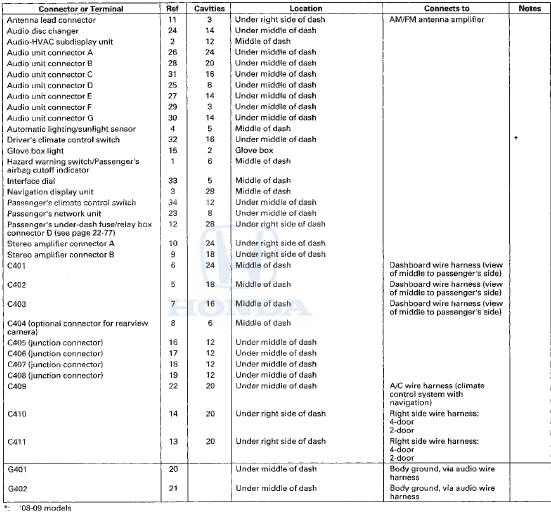

Audio Wire Harness (With Premium Audio System and Navigation System)


Audio Wire Harness (With Premium Audio System and Navigation System)

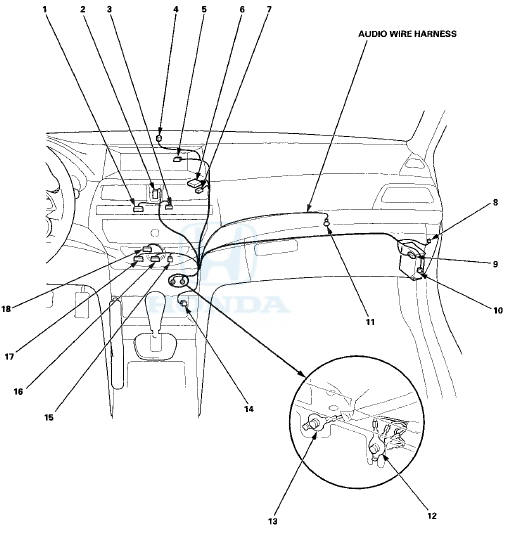

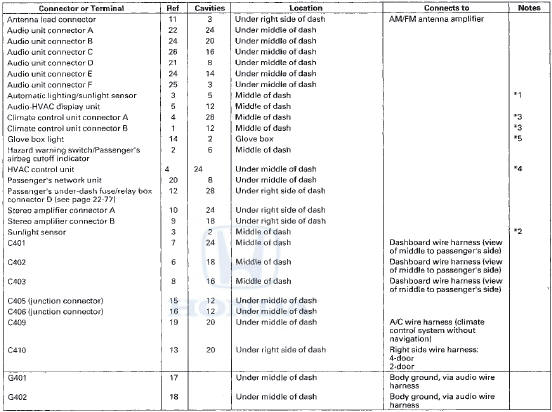

Audio Wire Harness (With Premium Audio System without Navigation System)


Audio Wire Harness (With Premium Audio System without Navigation System)

*1: With automatic lighting


*1: With automatic lighting

*2; Without automatic lighting

*3. With climate control

*4: With HVAC control

*5: '08-09 models

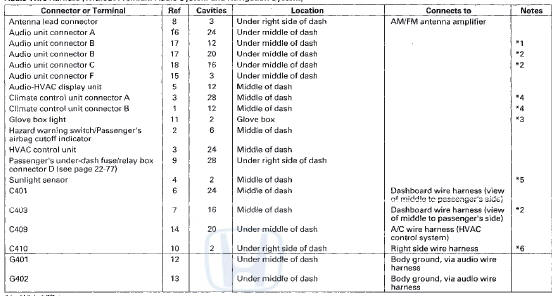

Audio Wire Harness (Without Premium Audio System and Navigation System)


Audio Wire Harness (Without Premium Audio System and Navigation System)

*1: With 1 CD type


*1: With 1 CD type

*2: With 6CD type

*3: '08-09 models

*4: With climate control

*5: With HVAC control

*6: 2-door with 6CD type

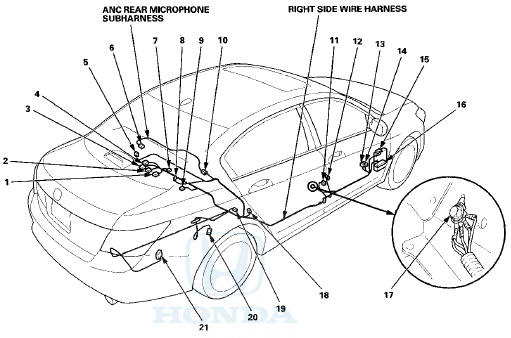

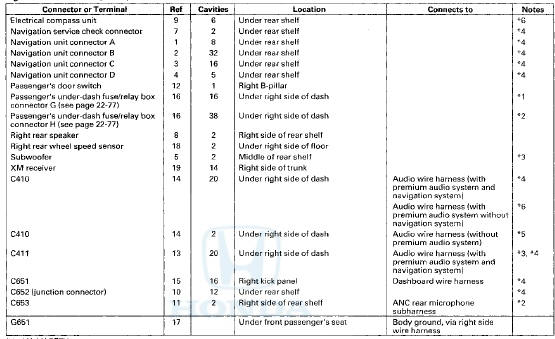

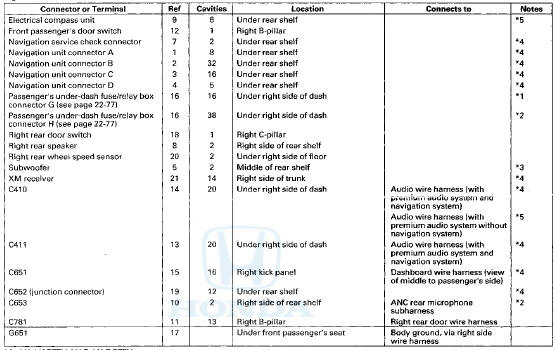

Right Side Wire Harness (4-door)


Right Side Wire Harness (4-door)

* 1 : LX, LX PZEV, LX-P, LX-P PZEV


* 1 : LX, LX PZEV, LX-P, LX-P PZEV

* 2 : Except LX, LX PZEV, LX-P, LX-P PZEV

*3: With premium audio system

*4: With navigation system

*5: With premium audio system without navigation system

ANC Rear Microphone Subharness (4-door) (Except LX, LX PZEV, LX-P, LX-P PZEV)


Right Side Wire Harness (2-door)


Right Side Wire Harness (2-door)

* 1 : LX, LX PZEV


* 1 : LX, LX PZEV

* 2 : Except LX, LX PZEV

* 3 : With premium audio system

*4: With navigation system

* 5 : Without premium audio system

* 6 : With premium audio system without navigation system

ANC Rear Microphone Subharness (2-door) (Except LX, LX PZEV)

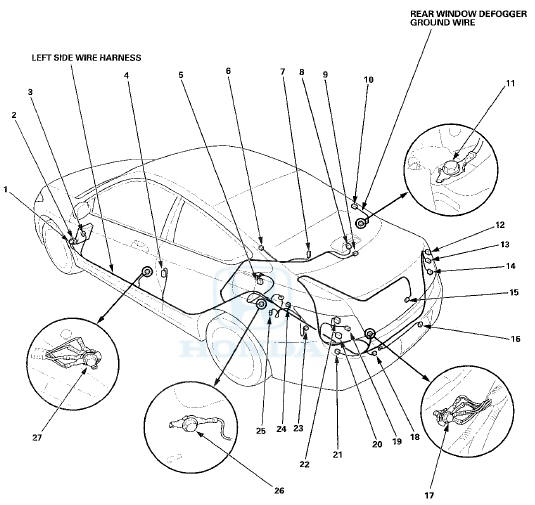

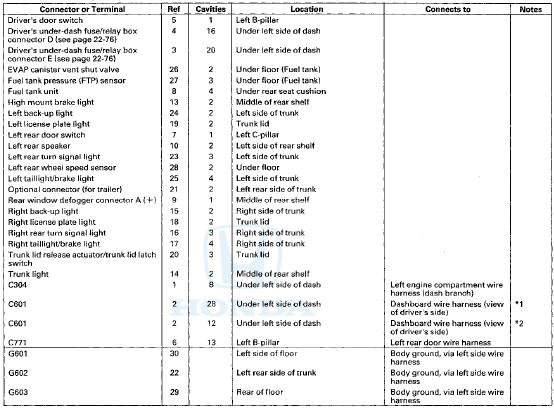

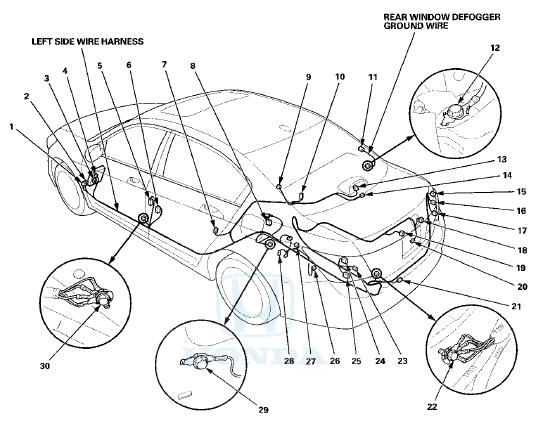

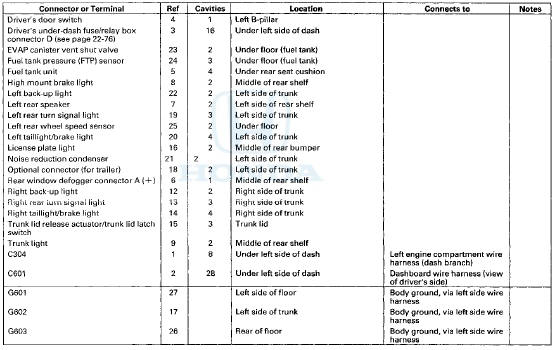

Left Side Wire Harness (4-door)


Left Side Wire Harness (4-door)

*1: Except LX, LX PZEV, LX-P, LX-P PZEV


*1: Except LX, LX PZEV, LX-P, LX-P PZEV

*2: LX, LX PZEV, LX-P LX-P PZEV

Rear Window Defogger Ground Wire (4-door)


Left Side Wire Harness (2-door)


Left Side Wire Harness (2-door)

Rear Window Defogger Ground Wire (2-door)


Rear Window Defogger Ground Wire (2-door)

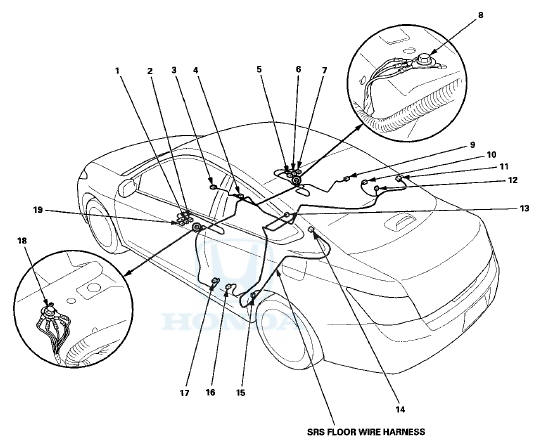

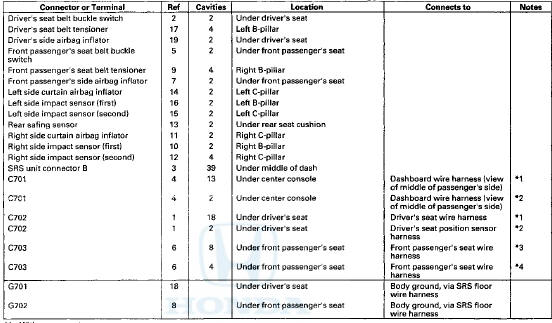

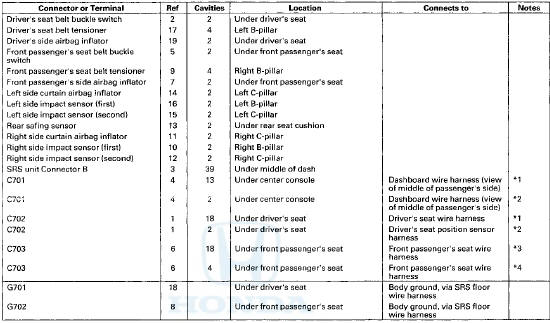

SRS Floor Wire Harness (4-door)


SRS Floor Wire Harness (4-door)

*1: With power seat


*1: With power seat

*2: Without power seat

*3: With seat heater

*4: Without seat heater

SRS Floor Wire Harness (2-door)


SRS Floor Wire Harness (2-door)

* 1 : With power seat


* 1 : With power seat

*2: Without power seat

*3: With seat heater

*4: Without seat heater

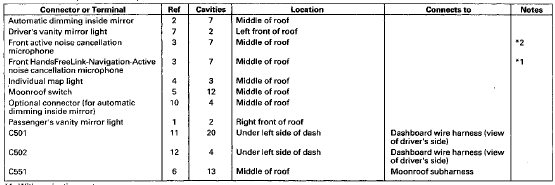

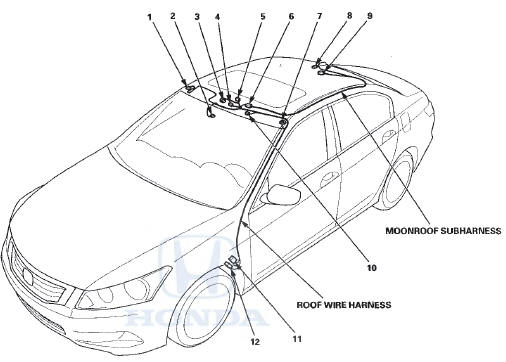

Roof Wire Harness (With moonroof)


Roof Wire Harness (With moonroof)

*1: With navigation system


*1: With navigation system

*2 With HandsFreeLink control system

Moonroof Subharness

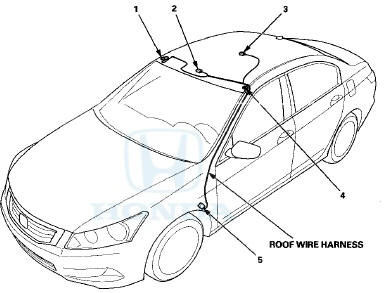

Roof Wire Harness (Without moonroof)


Roof Wire Harness (Without moonroof)

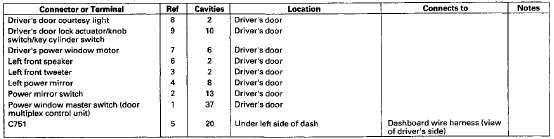

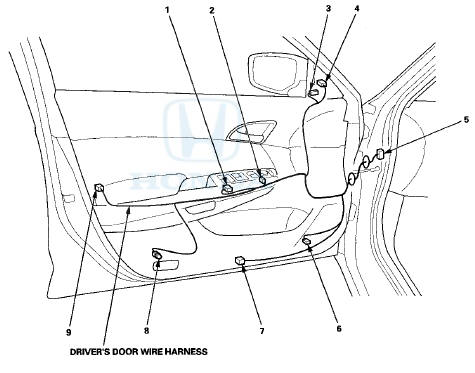

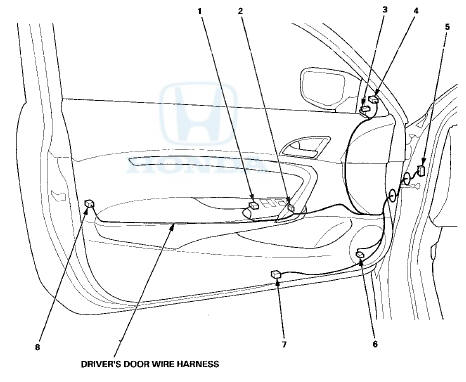

Driver's Door Wire Harness (4-door)


Driver's Door Wire Harness (4-door)

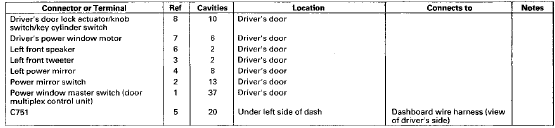

Driver's Door Wire Harness (2-door)


Driver's Door Wire Harness (2-door)

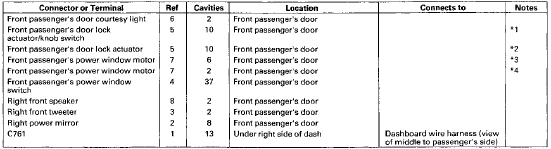

Front Passenger's Door Wire Harness (4-door)


Front Passenger's Door Wire Harness (4-door)

*1: With security


*1: With security

*2: Without security

*3: With AUTO UP/AUTO DOWN function

*4: Without AUTO UP/AUTO DOWN function

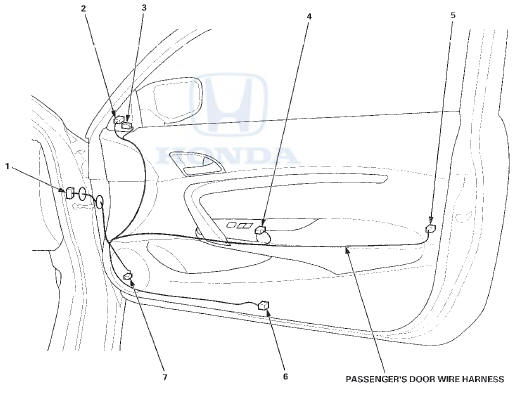

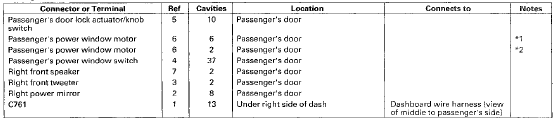

Passenger's Door Wire Harness (2-door)


Passenger's Door Wire Harness (2-door)

*1: With AUTO UP/AUTO DOWN function


*1: With AUTO UP/AUTO DOWN function

*2: Without AUTO UP/AUTO DOWN function

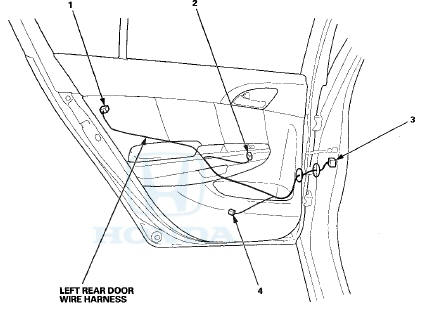

Left Rear Door Wire Harness (4-door)


Left Rear Door Wire Harness (4-door)

*1: With security


*1: With security

*2: Without security

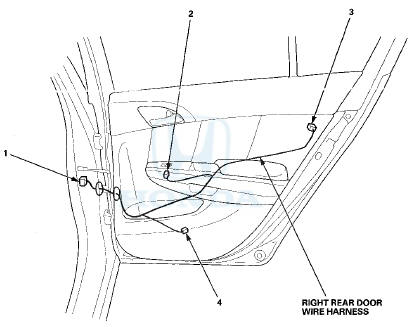

Right Rear Door Wire Harness (4-door)

*1: With security


*1: With security

*2: Without security

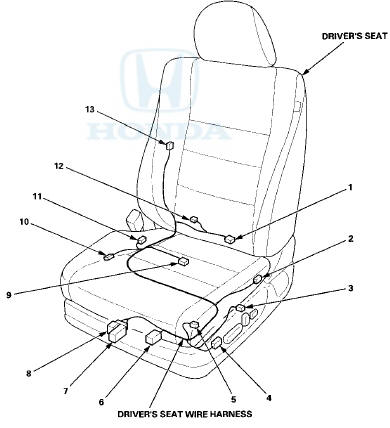

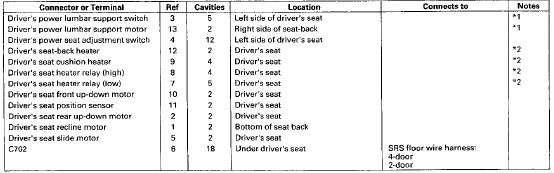

Driver's Seat Wire Harness (With power seat)


Driver's Seat Wire Harness (With power seat)

*1: With power lumbar support


*1: With power lumbar support

*2: With seat heater

Driver's Seat Position Sensor Harness (Without power seat)


Driver's Seat Position Sensor Harness (Without power seat)

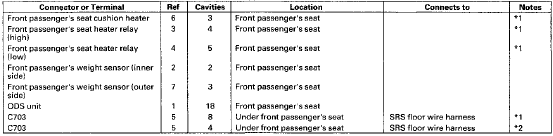

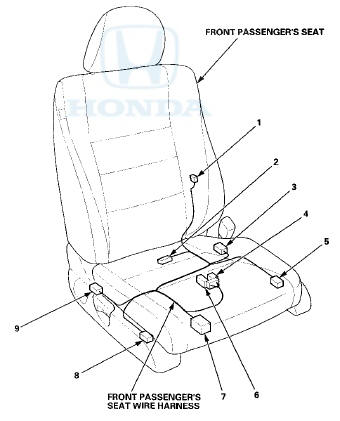

Front Passenger's Seat Wire Harness (4-door)


Front Passenger's Seat Wire Harness (4-door)

*1: With seat heater


*1: With seat heater

*2: Without seat heater

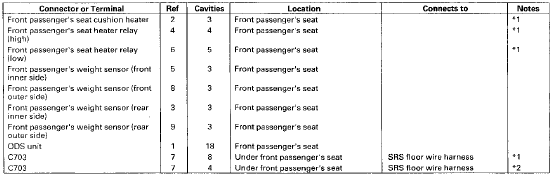

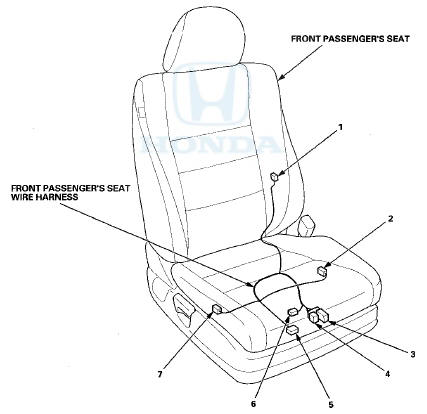

Front Passenger's Seat Wire Harness (2-door)


Front Passenger's Seat Wire Harness (2-door)

*1: With seat heater


*1: With seat heater

* 2 : Without seat heater

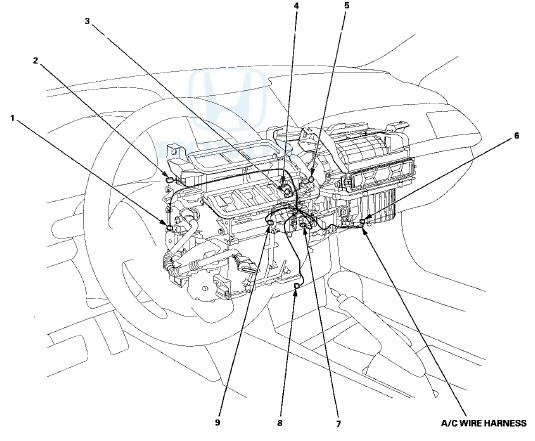

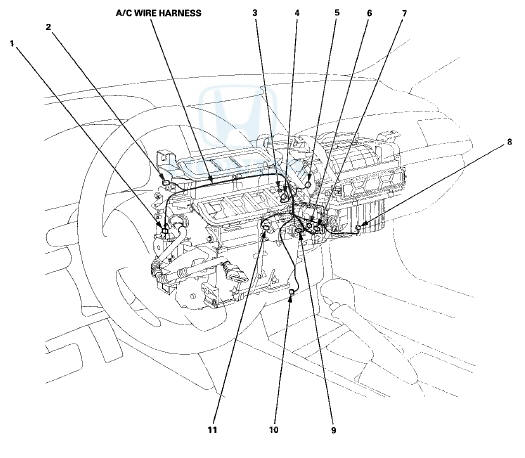

A / C Wire Harness (Climate Control System with Navigation)


A / C Wire Harness (Climate Control System with Navigation)

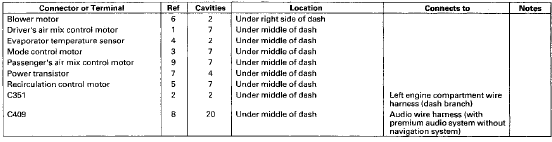

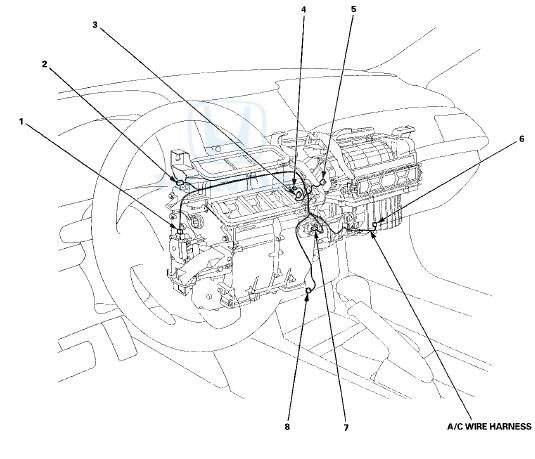

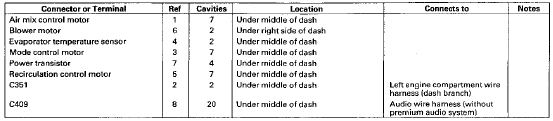

A/C Wire Harness (Climate Control System without Navigation)


A/C Wire Harness (Climate Control System without Navigation)


A/C Wire Harness (HVAC Control System)


A/C Wire Harness (HVAC Control System)

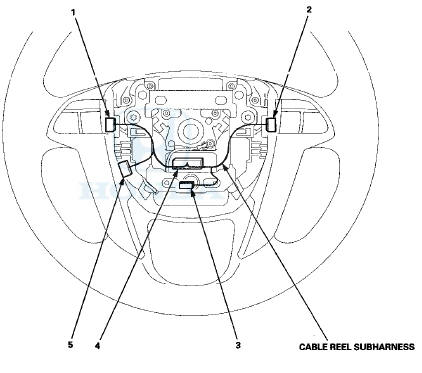

Cable Reel Subharness


Cable Reel Subharness

* 1 : With HandsFreeLink


* 1 : With HandsFreeLink

*2: With navigation system

Fuse/Relay Boxes


    Connector Index
    Identification numbers have been assigned to in-line connectors, junction connectors, and terminals. The number is preceded by the letter "C" for connectors, " G " for ground te ...

    Fuse/Relay Boxes
    Connector to Fuse/Relay Box Index Under-hood Fuse/Relay Box *: '08-09 models Driver's Under-dash Fuse/Relay B O M Passenger's Under-dash Fuse/Relay Box *1: LX, LX PZEV, LX-P, LX-P PZE ...
