Honda Accord: Circuit Diagram - A/T interlock System - Transaxle - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram

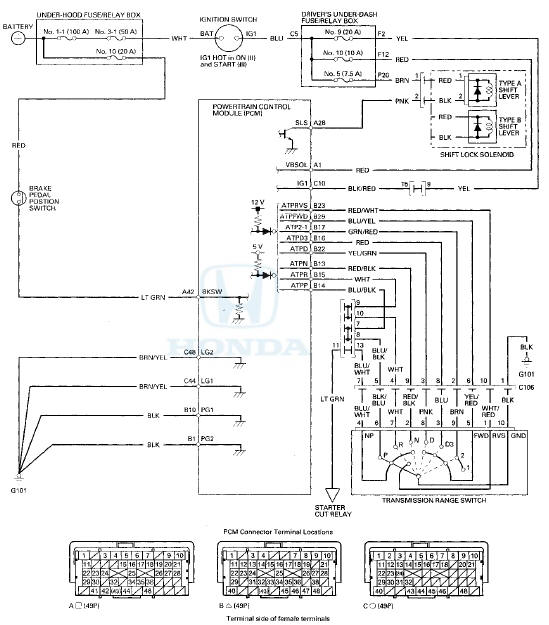

Shift Lock System Circuit


    Component Location Index
    ...

    Shift Lock System Circuit Troubleshooting
    1. Connect the HDS to the DLC (A) located under the driver's side of the dashboard. 2. Turn the ignition switch to ON (II). Make sure the HDS communicates with the PCM. If it does not, go to the ...
