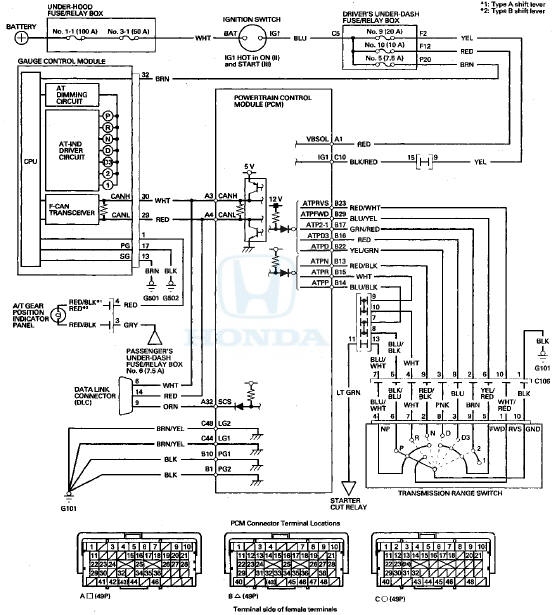

Honda Accord: Circuit Diagram - A/T Gear Position indicator - Transaxle - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram

Transmission Range Switch Test


    Component Location Index
    ...

    Transmission Range Switch Test
    1. Raise the vehicle on a lift, or apply the parking brake, block the rear wheels, and raise the front of the . vehicle. Make sure it is securely supported. 2. Remove the left front wheel. 3. ...
