Honda Accord: Audio Remote Switch Test - Audio System - Audio, Navigation, and Telematics - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Audio Remote Switch Test

1. Remove the steering wheel (see page 17-6).

2. Remove the audio remote switch (see page 17-7).

3. Measure the resistance between the terminals No. 1

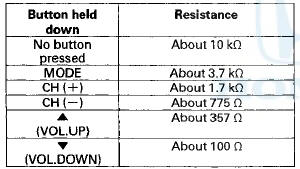

3. Measure the resistance between the terminals No. 1 and No. 8 in each switch position according to the table.

4. If the resistance is not as specified, replace the audio


4. If the resistance is not as specified, replace the audio remote switch.
