A/F Sensor Replacement

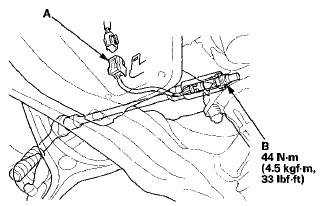

Special Tools Required 02 Sensor Wrench Snap-on S6176 or equivalent, commercially available 1. Disconnect the A/F sensor 4P connector (A), then remove the A/F sensor (B). 2. Install the parts i ...

CMP Sensor B Replacement

1. Disconnect the connector (A) and hoses (B) from the EVAP canister purge valve (C), then remove the EVAP canister purge valve assembly. 2. Disconnect the CMP sensor B connector (A). 3. Remov ...

See also:

Radiator and A/C Condenser Fan Common Circuit Troubleshooting
NOTE: • Do not use this troubleshooting procedure if only one fan is inoperative, or if the A/C compressor is inoperative. Refer to the symptom troubleshooting index. • Before doing s ...

Mainshaft 5th Gear Axial Clearance Inspection
1. Remove the mainshaft transmission housing bearing (seepage 14-270). 2. Install the thrust needle bearing ( A ) , 5th gear ( B ) , the needle bearing (C), the thrust needle bearing (D), the 41 ...

Sunvisor Removal/Installation
NOTE: - Put on gloves to protect your hands. - Take care not to bend or scratch the headliner. - When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage. 1. ...
