Honda Accord: Oil Filter Base Replacement
1. Remove the oil filter (see page 8-12).

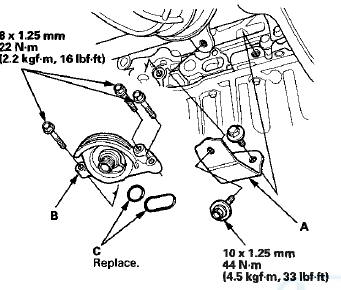

2. Remove the exhaust pipe bracket (A), then remove the oil filter base (B).
3. Clean the O-ring grooves and the mating surface with the oil filter base.
4. Install the oil filter base with new O-rings (C).
5. Install the oil filter (see page 8-12).
Engine Oil Filter Replacement
Special Tools Required
Oil Filter Wrench 07 AAA-PLC A100
1. Drain the engine oil (see page 8-11).
2. Remove the oil filter with the oil filter wrench.
3. Inspect the filter to make sure the ru ...
Oil Filter Feed Pipe Replacement
1. Remove the oil filter base (see page 8-13).
2. Remove the oil filter feed pipe.
3. Install the two 20 x 1.5 mm nuts (A) onto the new oil
filter feed pipe. Hold one nut with a wrench, then us ...
