Honda Accord: Hood insulator Replacement
For Some Models
NOTE; Take care not to scratch the hood.

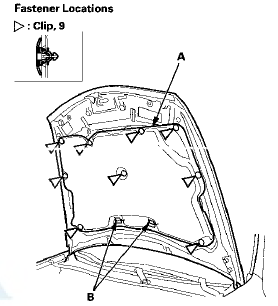

1. Detach the clips with a clip remover. Remove the hood insulator (A) by pulling it away from the hooks (B).
2. Install the insulator in the reverse order of removal, and note these items: - If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
Hood Seal and Hood Molding
Replacement
NOTE: Take care not to scratch the hood.
1. Detach the clips (A) with a clip remover, then remove
the hood seal (B). On Canada models: Detach the clips
(C), then remove the hood molding (D).
2-d ...
