Honda Accord: Ground Distribution - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Ground Distribution

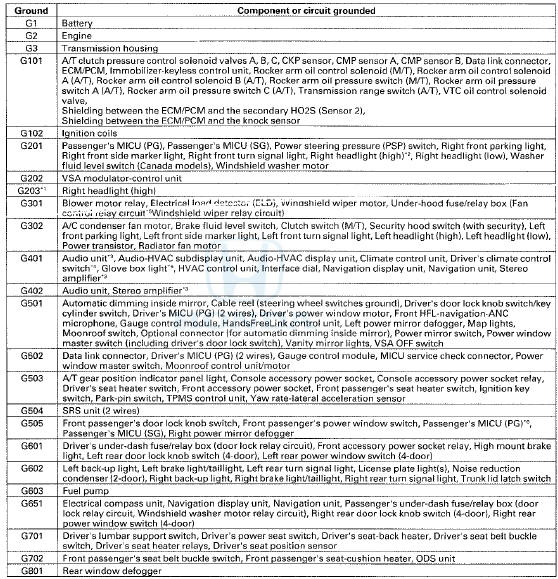

Ground to Components Index

* 1 : EX-L, EX-L PZEV


* 1 : EX-L, EX-L PZEV

*2: Except EX-L, EX-L PZEV

*3: With premium audio system

*4: With navigation system

*5: '10 model

*6: '08-09 models

    Power Distribution
    Fuse to Components Index Under-hood Fuse/Relay Box * 1 : LX, LX PZEV, LX-P, LX-P PZEV *2: Except LX, LX PZEV, LX-P, LX-P PZEV Driver's Under-dash Fuse/Relay Box Passenger's Under-dash Fus ...

    Under-hood Fuse/Relay Box
    Removal and Installation Special Tools Required Relay Puller 07AAC-000A1A0 NOTE; The under-hood fuse/relay box is a part of the left engine compartment wire harness, and it cannot be replaced by ...
