Honda Accord: Fuse/Relay Boxes - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Fuse/Relay Boxes

Connector to Fuse/Relay Box Index

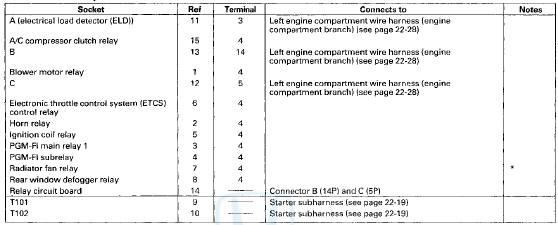

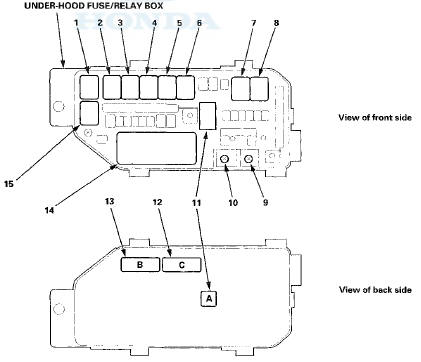

Under-hood Fuse/Relay Box

*: '08-09 models


*: '08-09 models

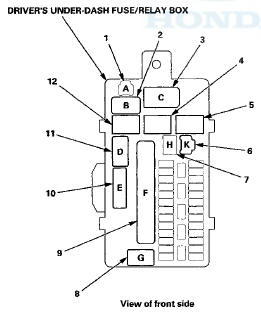

Driver's Under-dash Fuse/Relay B O M

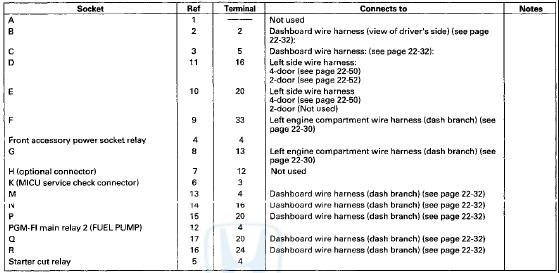

Driver's Under-dash Fuse/Relay B O M

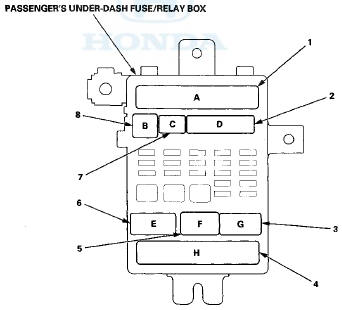

Passenger's Under-dash Fuse/Relay Box

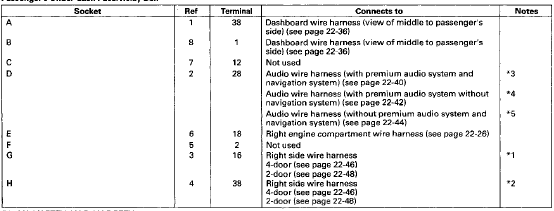

Passenger's Under-dash Fuse/Relay Box

*1: LX, LX PZEV, LX-P, LX-P PZEV


*1: LX, LX PZEV, LX-P, LX-P PZEV

*2: Except LX, LX PZEV, LX-P, LX-P PZEV

*3: With premium audio system and navigation system

*4: With premium audio system without navigation system

* 5 : Without premium audio system

Power Distribution
