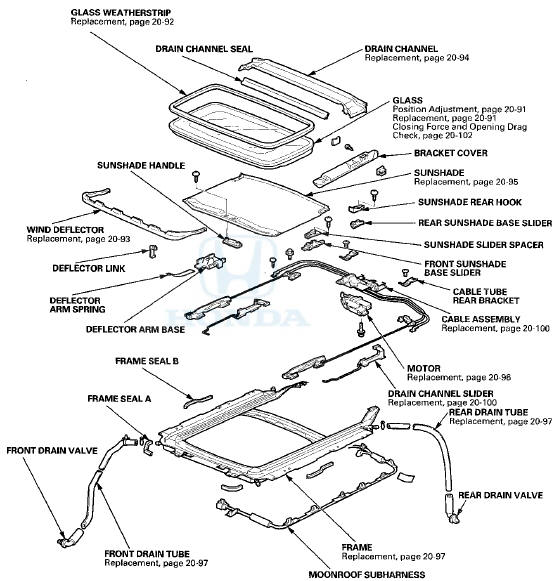

Moonroof

Symptom Troubleshooting Index

See also:

Passenger's Air Mix Control Motor Test
NOTE: Before testing the motor, check for HVAC DTCs (see page 21-101). 1. Disconnect the 7P connector from the passenger's air mix control motor. Incorrectly applying power and ground to the ...

Oil Pump Chain Replacement
NOTE: Keep the oil pump chain away from magnetic fields. Removal 1. Remove the drive belt (see page 4-30). 2. Remove the oil pan (see page 7-11). 3. Support the engine with a jack and a wood ...

Oil Jet Replacement
1. Remove the oil pump (see page 8-17). 2. Remove the baffle plate (see step 8 on page 7-14). 3. Remove the oil jet bolts (A), then remove the oil jets (B). 4. Carefully install the oil jets ...
