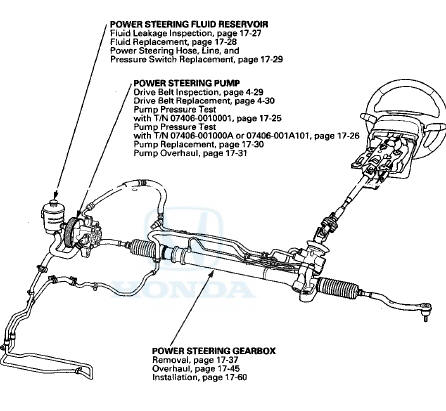

Hydraulic Power Steering Components

...

Symptom Troubleshooting Index

Find the symptom in the chart below, and do the related procedures in the order listed until you find the cause. ...

See also:

Ignition Key Switch Test
1. Remove the steering column upper and lower covers (see page 20-181). 2. Disconnect the 6P connector (A). 3. Check for continuity between terminals No. 1 and No. 2. • There should ...

Circuit Diagram
DRIVER'S UNDER-DASH FUSE/RELAY BOX CONNECTOR N (16P) Wire side of female terminals DRIVER'S UNDER-DASH FUSE/RELAY BOX CONNECTOR P (20P) Wire side of female terminals GAUGE CONTROL MODULE 3 ...
