Honda Accord: Circuit Diagram - Starting System - Engine Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram

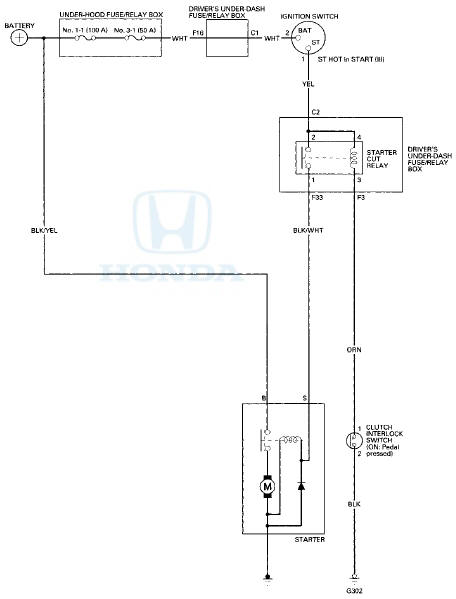

M/T model

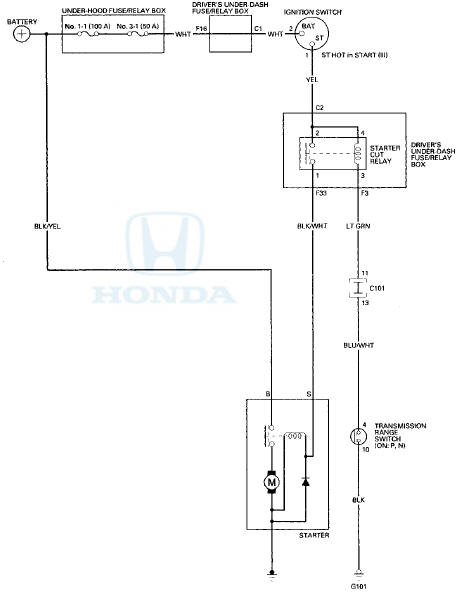

A/T modeS


A/T modeS

Starter System Circuit
