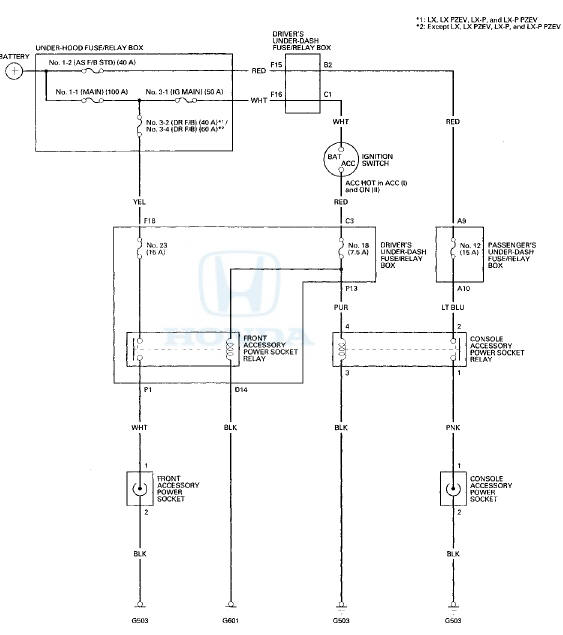

Honda Accord: Circuit Diagram
Eighth generation (2008–2012) / Honda Accord MK8 2008-2012 Service Manual / Body Electrical / Accessory Power Sockets / Circuit Diagram
Front Accessory Power Socket
Test/Replacement
NOTE: If all of the front and console accessory power
sockets do not work, check the No. 18 (7.5: A> fuse in the
driver's under-dash fuse/relay box and ground (G503)
first.
1. Remove the cent ...
