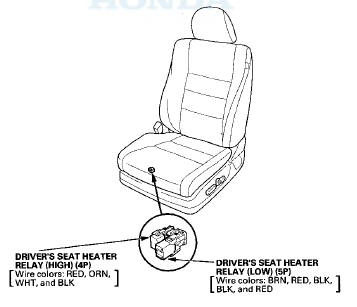

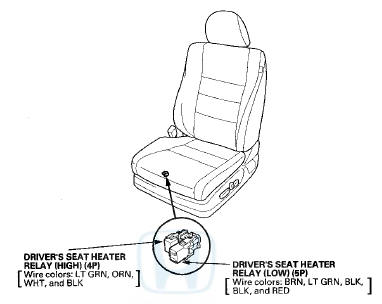

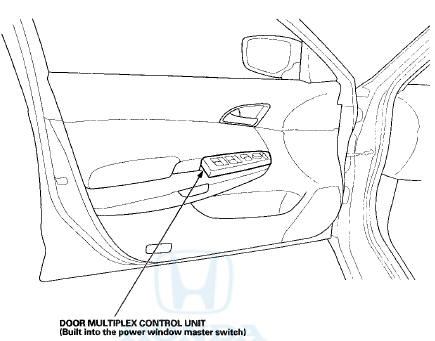

Driver's seat

- 4-door

2-door


2-door

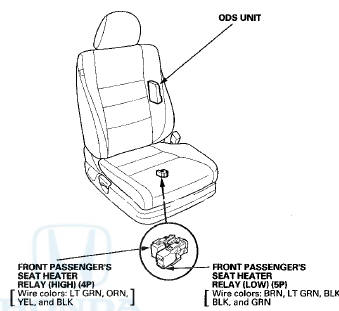

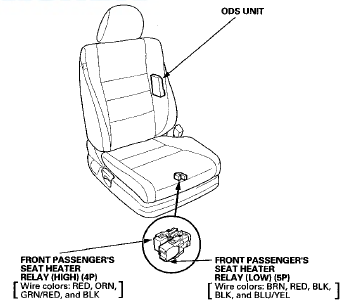

Front passenger's seat


Front passenger's seat

4-cfoor

2-door


2-door


Connectors and Harnesses


    Roof and Trunk
    ...

    Connectors and Harnesses
    ...

    See also:

    DTC Troubleshooting Index
    NOTE: The "x" at the end of each DTC denotes a numeric character (0 thru 9), or items with an asterisk (*) (0, 2 thru 9), or an alpha character (A thru F) that you will see on the HDS ...

    Circuit Diagram
    ...

    Motor Test
    1. Remove the front seat back panel, and seat-back cover/pad. • 4-door (see page 20-221) • 2-door (see page 20-213) 2. Disconnect the 2P connector (A) from the lumbar support motor (B ...
