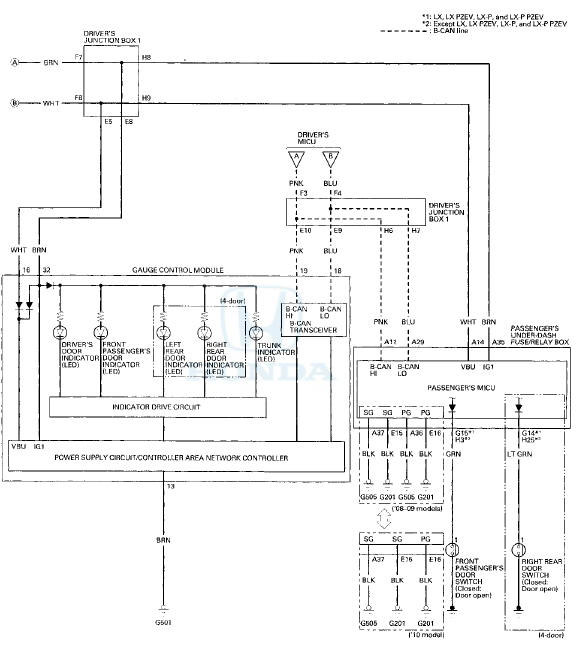

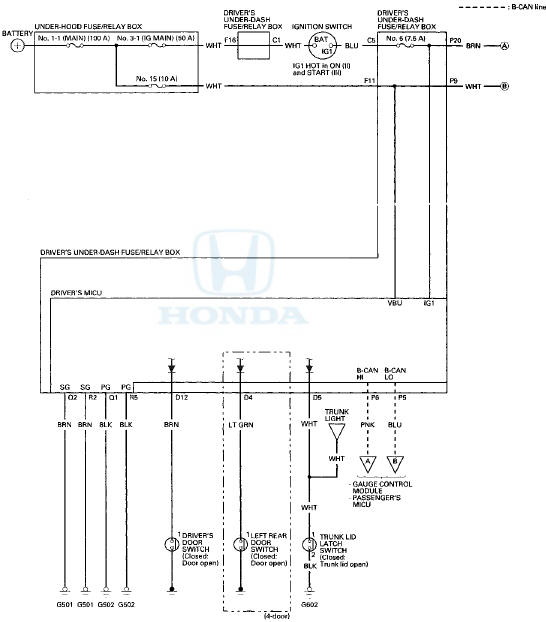

Honda Accord: Circuit Diagram
Eighth generation (2008–2012) / Honda Accord MK8 2008-2012 Service Manual / Body Electrical / Safety Indicator System / Circuit Diagram


Component Location Index
4-door
2-door
...
MICU Input Test
NOTE:
# Before t e s t i n g , t r o u b l e s h o o t the m u l t i p l e x i n t e g
r a t e d control unit first, using B-CAN System D i a g n o s i s Test Mode A
(see page 22-134).
• B ...
