Honda Accord: Circuit Diagram - Exterior Lights - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram

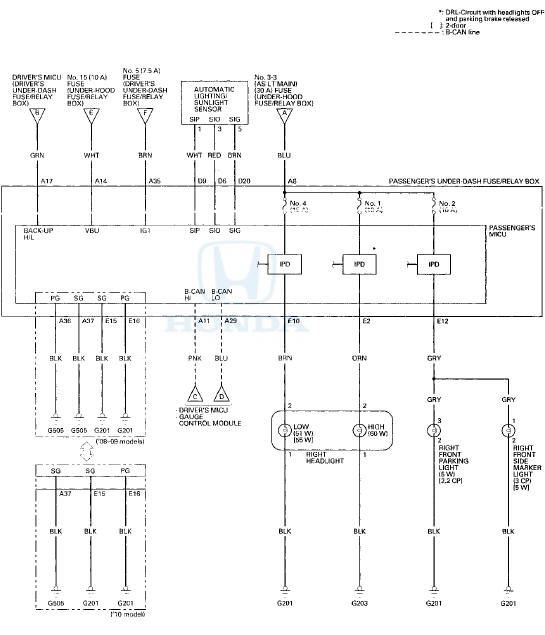

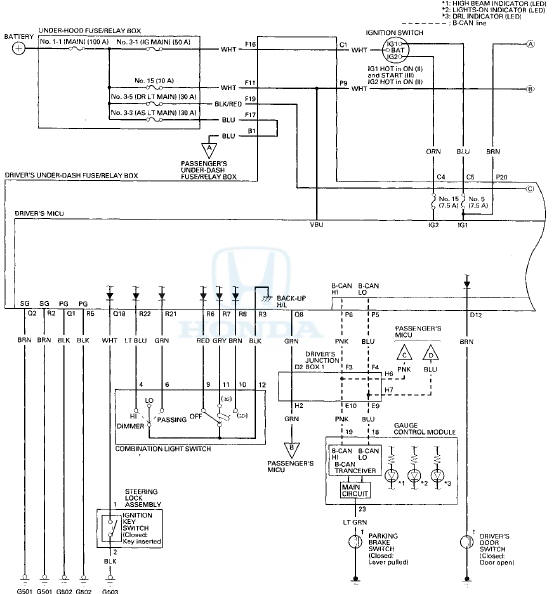

With automatic lighting

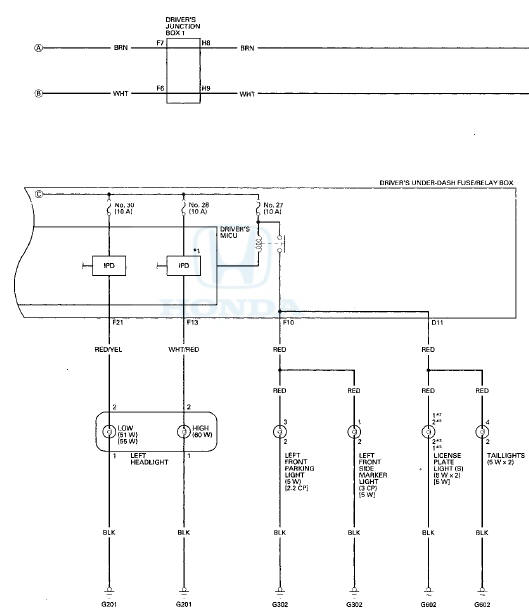

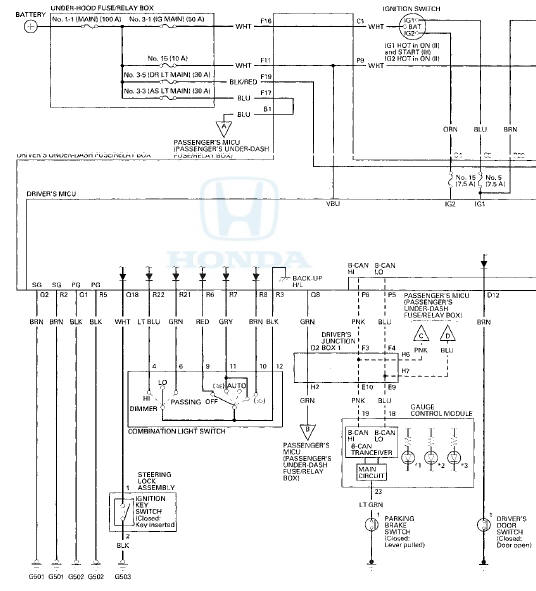

Without automatic lighting

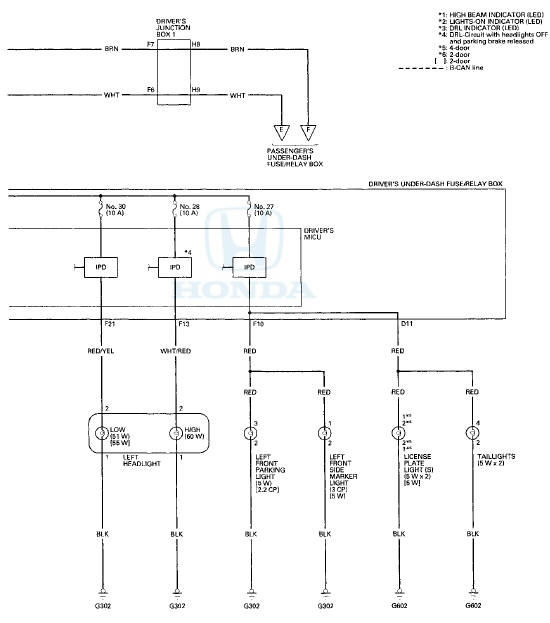

Without automatic lighting

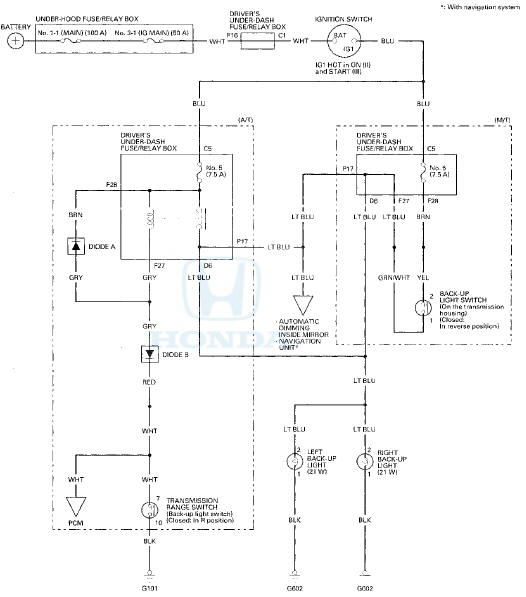

Back-up Lights


Back-up Lights

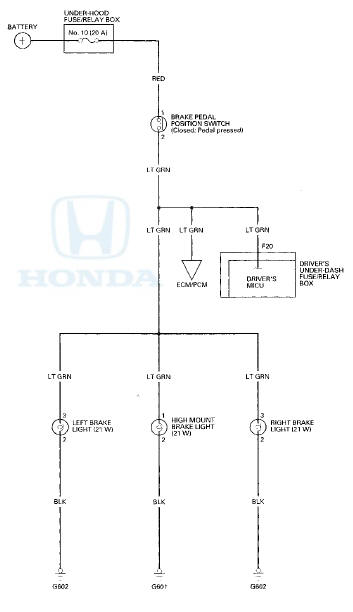

Brake Lights


Brake Lights

DTC Troubleshooting


    System Description
    Headlights System Description The headlight system Is composed of the driver's MICU, the passenger's MICU, the headlight and dimmer/flash-to-pass switches (Inside the combination light switch), th ...

    DTC Troubleshooting
    DTC B10CF: Left Daytime Running Lights Circuit Malfunction NOTE: • Make sure the No. 15 (7.5 A) fuse in the driver's under-dash fuse/relay box is OK. • If you are troubleshooting mult ...
