Honda Accord: Circuit Diagram - Heating/Air Conditioning - Heating, Ventilation, and Air Conditioning - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram

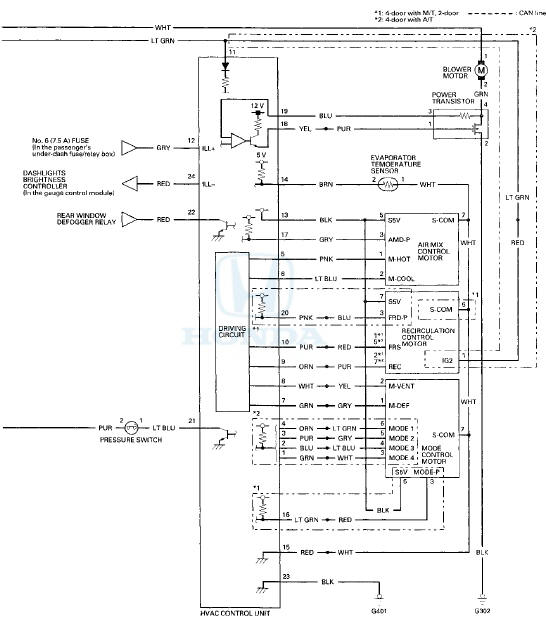

'08-09 Models

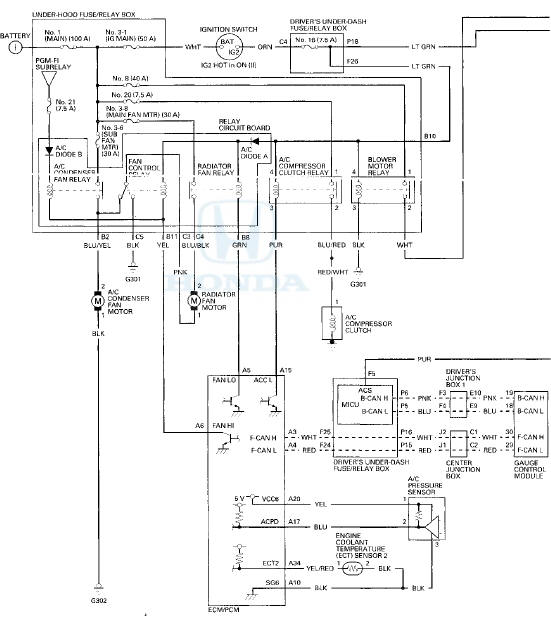

10 Model

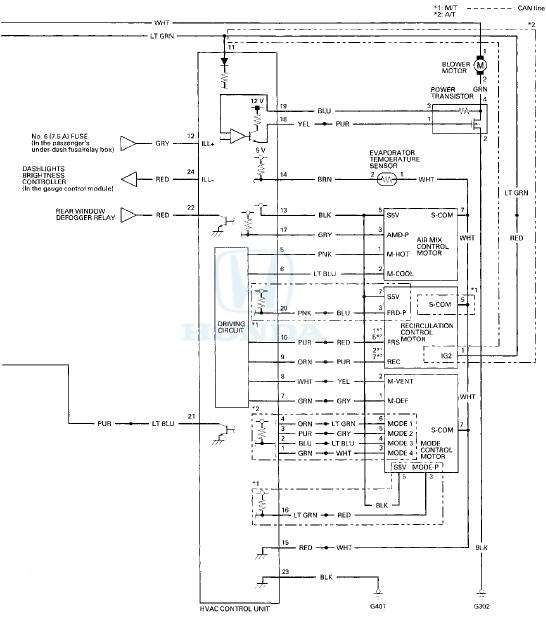

10 Model
