Honda Accord: Accelerator Pedal Module Removal/Installation - Electronic Throttle Control System - Fuel and Emissions - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Accelerator Pedal Module Removal/Installation

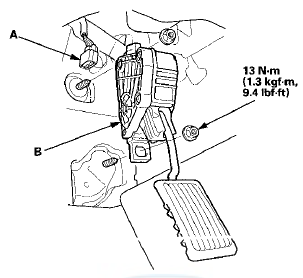

1. Disconnect the APP sensor connector (A).

2. Remove the accelerator pedal module (B).


2. Remove the accelerator pedal module (B).

NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal module.

3. Install the parts in the reverse order of removal.
