Honda Accord: Symptom Troubleshooting Index
Eighth generation (2008–2012) / Honda Accord MK8 2008-2012 Service Manual / Fuel and Emissions / Fuel and Emissions Systems / Symptom Troubleshooting Index

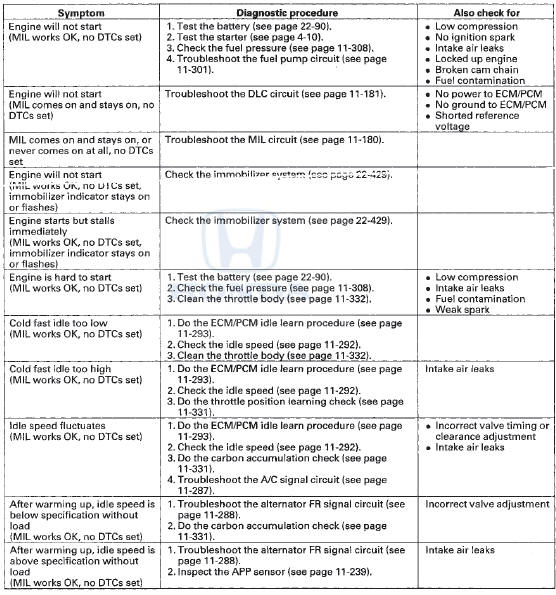

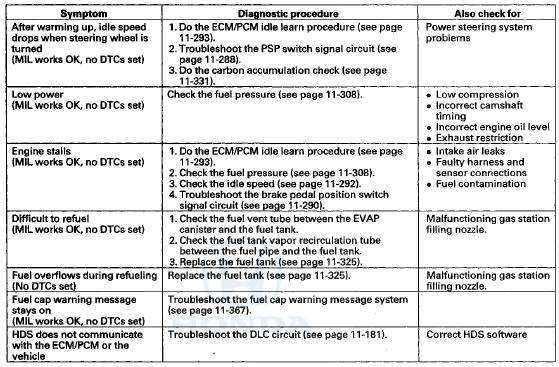

When the vehicle has one of these symptoms, check for a diagnostic trouble code (DTC) with the HDS. If there is no DTC, do the diagnostic procedure for the symptom, in the sequence listed, until you find the cause.
