Honda Accord: Yaw Rate-Lateral Acceleration Sensor Replacement - VSA System Components - Brakes - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Yaw Rate-Lateral Acceleration Sensor Replacement

NOTE: - Do not damage or drop the sensor as It Is sensitive.

- Do not use power tools when replacing the sensor.

1. Turn the ignition switch to LOCK (0).

2. Remove the center console (see page 20-158).

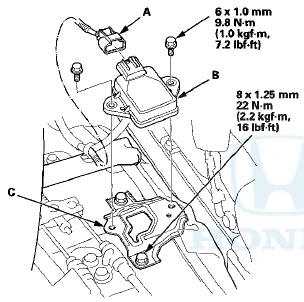

3. Disconnect the yaw rate-lateral acceleration sensor 5P connector (A), then remove the yaw rate-lateral acceleration sensor (B).

4. Check for deformation in the bracket (C). If necessary


4. Check for deformation in the bracket (C). If necessary replace it.

5. Install the yaw rate-lateral acceleration sensor in the reverse order of removal.

6. Do the VSA sensor neutral position memorization (see page 19-133).
