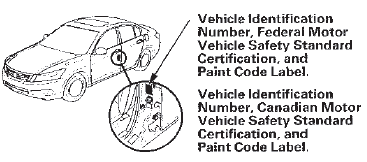

Honda Accord: Vehicle Identification Number - Chassis and Paint Codes - '09 4-door Model - General Information - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Vehicle Identification Number

Manufacturer, Make, and Type of Vehicle


Manufacturer, Make, and Type of Vehicle

1HG: Honda of America Mfg., inc.

Honda passenger vehicle .

JHM: Honda Motor Co., Ltd.

Honda passenger vehicle

Line, Body, and Engine Type

CP2: Accord/K24Z2, K24Z3

Body Type and Transmission Type

5:4-door Sedan/5-speed Manual

6:4-door Sedan/5-speed Automatic

Vehicle Grade (Series)

USA models

3: LX, LX PZEV

4: LX-P, LX-P PZEV

7: EX, EX PZEV

8: EX-L, EX-L PZEV

Canada models

3: LX

4: LX-P

7: EX

8: EX-L

Check Digit

Model Year

9: '09

Factory Code

A:Marysville, Ohio Factory in U.S.A.

C:Saitama Factory in Japan

h. Serial Number

0 0 0 0 0 1 U S A models

800001 - : Canada models

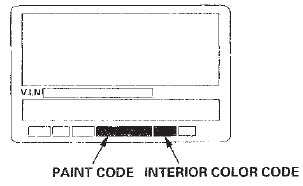

    Chassis and Paint Codes - '09 4-door Model
    ...

    Engine Number
    Engine Type K24Z2: 2.4 L DOHC i-VTEC Sequential Multiport Fuel-injected, 177HP engine K24Z3: 2.4 L DOHC i-VTEC Sequential Multiport Fuel-injected, 190HP engine Serial Number 2000001 - K24Z2 prod ...
