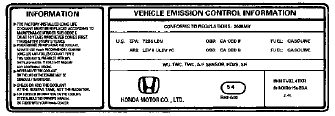

Honda Accord: Under-hood Emission Control Label
Emission Group Identification
Example:
08 Model
COMFORMS TO REGULATIONS: 2008 MY
Test Group and Evaporative Family
Test Group:
Model Year
8: '08
9: '09
A: "10
Manufacturer Subcode
HNX: HONDA
Family Type
V: LDV
Displacement Group
Sequence Characters
TKR: '08 model (ULEV)
EMC: '08 model (SULEV/PZEV)
YB3: '09 model (ULEV)
TC3: '09 model (SULEV/PZEV)
MB3: '10 model (ULEV)
KC3: '10 model (SULEV/PZEV)
- Evaporative Family:
Model Year
8: '08
9: '09
A: "10
Manufacturer Subcode
HNX: HONDA
Family Type
R: Refueling
Canister Working Capacity Group
Sequence Characters
BCA, BBA: '08 model
VEA, VZA: '09-10 models
Danger/Warning/Caution Label Locations (cont'd)
2-door Model
4-door SV9odel:
2-door Model:
...
Lift and Support Points
NOTE: If you are going to remove heavy components
such as suspension or the fuel tank from the rear of the
vehicle, first support the front of the vehicle with tall
safety stands. When substantial ...
