HandsFreeLink Control Unit Inputs and Outputs

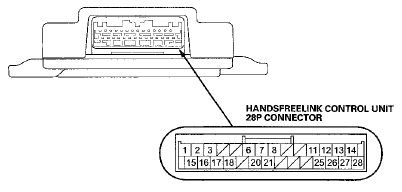

HandsFreeLink Control Unit 28P Connector

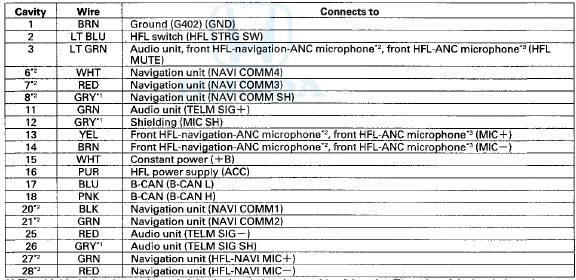

HandsFreeLink Control Unit 28P Connector

*l:The shielded wires have a heat-shrink tube insulating the outside of the


*l:The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray may not match the color of the wire shown on the circuit diagram.

*2:With navigation

*3:Without navigation
