Honda Accord: System Description - Automatic Dimming Inside Mirror - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: System Description

EX-L, EX-L PZEV models

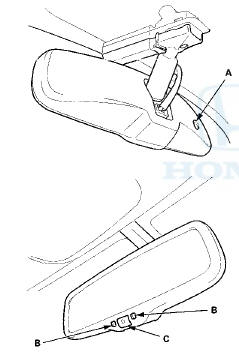

The automatic dimming Inside mirror has a front-facing lux level sensor (A), rear-facing lux level sensors (B), and a control unit. The control unit receives signals from each sensor. Based on the difference between the two lux levels (the light outside the vehicle and the light from the headlights of the other vehicle, etc.), the control unit controls the electro-chromic gel to reduce glare. This dimming function is canceled when the transmission is in reverse, or when the automatic dimming off button (C) Is turned OFF.

Test/Replacement


    Circuit Diagram
    ...

    Test/Replacement
    EX-L, EX-L PZEV models 1. Remove the cover (A), then disconnect BP connector (B). 2. Turn the ignition switch to ON (II). 3. Measure the voltage between terminal No. 2 and body ground. в ...
