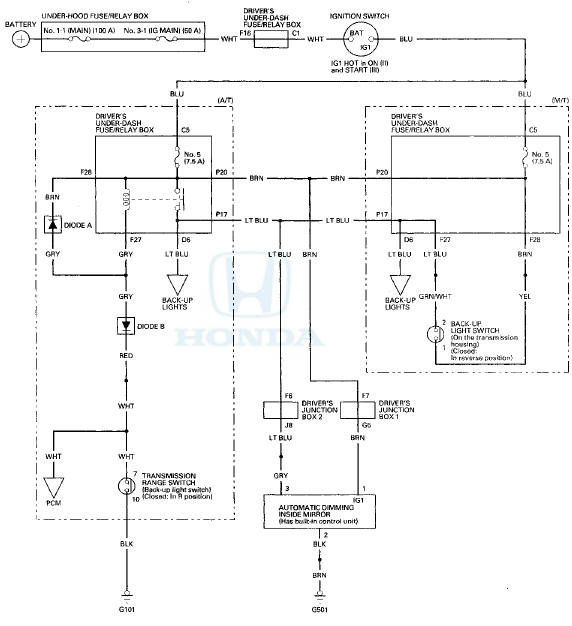

Honda Accord: Circuit Diagram - Automatic Dimming Inside Mirror - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram

System Description


    Automatic Dimming Inside Mirror
    ...

    System Description
    EX-L, EX-L PZEV models The automatic dimming Inside mirror has a front-facing lux level sensor (A), rear-facing lux level sensors (B), and a control unit. The control unit receives signals from ea ...
