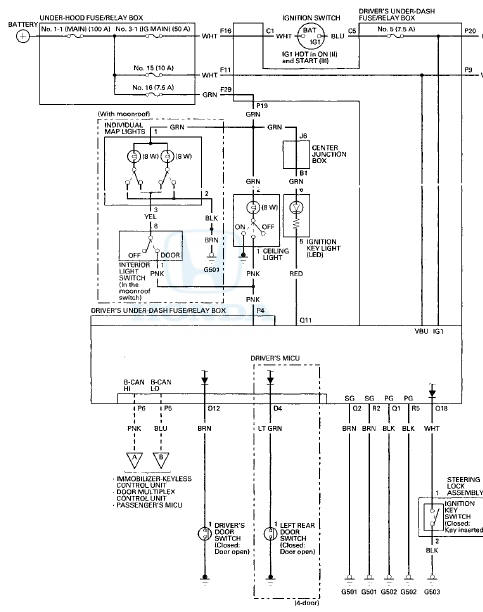

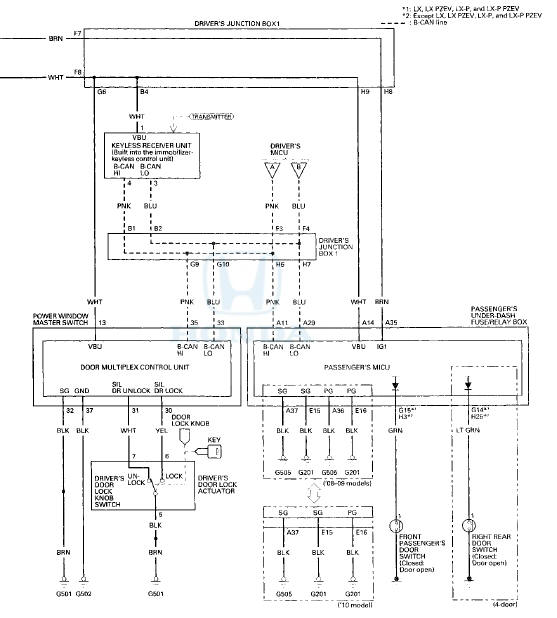

Honda Accord: Circuit Diagram - Entry Lights Control System - Body Electrical - Honda Accord MK8 2008-2012 Service ManualHonda Accord: Circuit Diagram


Control Unit Input Test


    Component Location Index
    4-door with moonroof 2-door with moonroof ...

    Control Unit Input Test
    NOTE: Before testing, troubleshoot the multiplex integrated control unit first, using B-CAN System Diagnosis Test Mode A (see page 22-134), Driver's MICU 1. Turn the ignition switch to LOCK (0), ...
