Honda Accord: Replacing the High-mount Brake Light Bulb

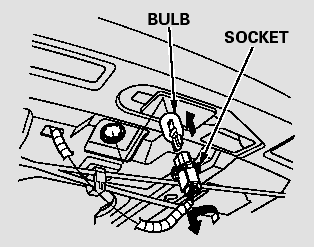

1. Open the trunk, and remove the socket from the light assembly by turning it one-quarter turn counterclockwise.
2. Pull the bulb straight out of its socket. Push the new bulb straight into the socket until it bottoms.
3. Reinstall the socket. Turn it clockwise until it locks. Make sure the new bulb is working.
Replacing Rear Bulbs
1. Open the trunk.
Remove the screws in the center
of each of the two fasteners on the
side of the trunk lining. Pull the
lining back.
2. Determine which of the three
bulbs is burned out: ...
Replacing a Fog Light Bulb
If equipped
Your vehicle uses halogen light
bulbs. When replacing a bulb, handle
it by its plastic case, and protect the
glass from contact with your skin or
hard objects. If you touch the gl ...
