Transmission Reassembly

NOTE: Prior to reassembly, clean all the parts in solvent, dry them, and apply MTF to any contact surfaces. 1. Install the magnet (A) and the differential assembly (B). NOTE: Clean the magnet ...

Shift Lever Housing Replacement

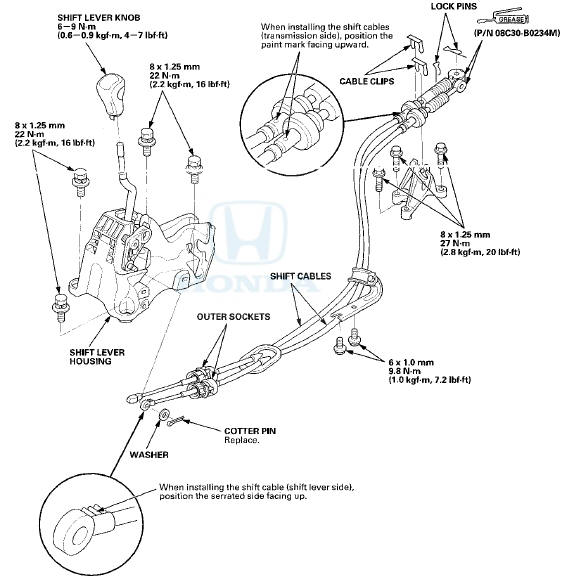

NOTE: - Use the appropriate tool from the KTC trim tool set to avoid damage when removing components. - Take care not to scratch the center console, dashboard, and related parts. 1. Remove th ...

See also:

Compass Operation
Compass operation can be affected by driving near power lines or stations, across bridges, through tunnels, over railroad crossings, past large vehicles, or driving near large objects that c ...

Shift Lock Release, Release Spring, and Release Shaft Replacement
Type A Shift Lever 1. Remove the shift lever assembly (see page 14-222). 2. Remove the A/T gear position indicator panel from the shift lever (see page 14-227). 3. Release the lock (A) of the ...

A/T Gear Position Indicator Panel Light Harness Replacement
Type A Shift Lever NOTE: The A/T gear position indicator panel light harness and the park pin switch are not available separately. Replace the A/T gear position indicator panel light harness and t ...
